Product Model
vsva-b-d52-h-a2-1r2l
Key Features
- 1The VSVA-B-D52-H-A2-1R2L solenoid valve offers a standard nominal flow rate of 550 l/min, ensuring efficient operation in various industrial applications.
- 2With electric actuation, this valve provides precise control over fluid flow, making it suitable for applications requiring high accuracy and reliability.
- 3The 5/2 bistable design allows for easy switching between two positions, enhancing the versatility of the valve in different industrial settings.
- 4The valve is designed with a robust construction, featuring an IP65 protection class and resistance to shock and vibration, ensuring durability in harsh environments.
- 5The VSVA-B-D52-H-A2-1R2L solenoid valve conforms to international standards such as ISO 15407-1 and VDMA 24563, ensuring compatibility and reliability in global applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable, dominant | Actuation type | Electrical |
| Width | 18mm | Standard nominal flow rate | 550l/min |
| Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 | Operating voltage | 24V DC |
| Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
| Certification | C-Tick c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Degree of protection | IP65 |
| Nominal width | 5mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Conforms to standard | ISO 15407-1 VDMA 24563 | Manual override | Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |

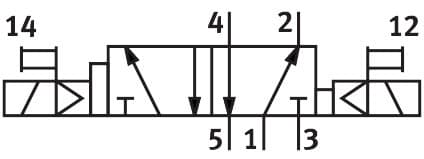

| Flow direction | Non-reversible | Symbol | 00991059 |
| Lap | Overlap | Reverse polarity protection | for all electrical connections |
| Additional functions | Holding current reduction Safety shut-down | Signal status display | LED |
| Flow rate of pneumatic valve | 750l/min | Flow rate of pneumatic valve on individual sub-base | 550l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 550l/min | Changeover time | 10ms |
| DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 500μs | Max. negative test pulse on 1 signal | 500μs |
| Coil characteristics | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Relative air humidity | 0 - 90 % | Protection against direct and indirect contact | PELV |
| Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 0.9Nm 1.1Nm |
| Product weight | 140g | Electrical connection | 4-pin M8x1 Central plug Round design |
| Type of mounting | On sub-base | Note on materials | RoHS-compliant |
| Manufacturer ID | 534777 |
Specifications may be subject to change without notice
