Product Model

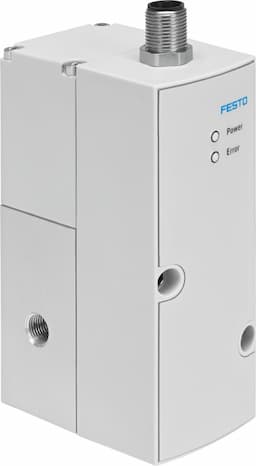

vppx-6l-l-1-g18-0l10h-s1
Key Features
- 1Precise Pressure Control: Regulates pressure from 0.1 to 10 bar with a maximum input pressure of 11 bar.
- 2High Flow Rate: Achieves a standard nominal flow rate of 1,400 liters per minute.
- 3Electrical Actuation: Features electrical actuation for precise control and reliability.
- 4Compact Design: Compact size with a nominal diameter of 6 mm and exhaust diameter of 4.5 mm.
- 5Robust Construction: Built with wrought aluminum alloy housing and anodized for corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width pressurization | 6mm | Exhaust nominal width | 4.5mm |
| Actuation type | Electrical | Sealing principle | Soft |
| Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections | Safety instructions | VPPX safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve | Display type | LED |
| Pressure regulation range | 0.1bar 10bar | Inlet pressure 1 | 0bar 11bar |
| Max. pressure hysteresis | 0.05bar | Standard nominal flow rate | 1400l/min |
| DC operating voltage range | 21.6V 26.4V | Max. current consumption | 300mA |
| Duty cycle | 100% | Max. electrical power consumption | 7W |
| Residual ripple | 10 % | Analog output signal range | 0 - 10 V 0 - 20 mA 4 - 20 mA |
| Analog input signal range | 0 - 10 V 4 - 20 mA 0 - 20 mA | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible | Certification | RCM compliance mark c UL us - Listed (OL) |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E322346 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 10°C 50°C | Degree of protection | IP65 |
| Ambient temperature | 0°C 60°C | Product weight | 400g |
| Temperature coefficient | 0.04%/K | Repetition accuracy FS | 0.5% |
| Repetition accuracy in ± %FS | 0.5%FS | Electrical connection | 8-pin M12 Plug |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy Anodized |
| Manufacturer ID | 570967 |
Specifications may be subject to change without notice
