Product Model

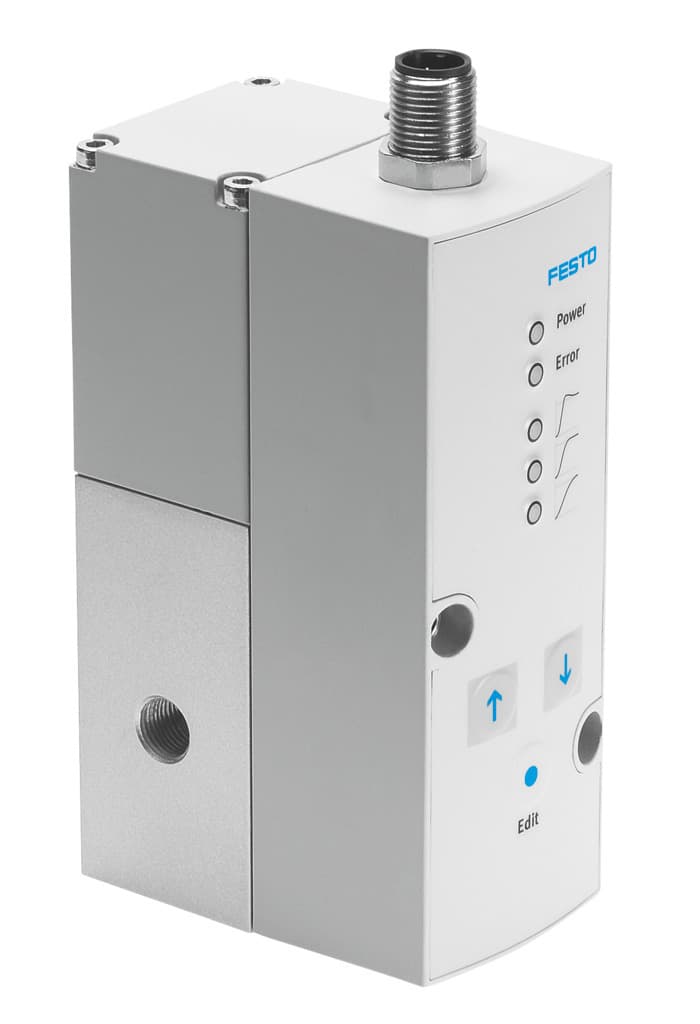

vppm-6l-l-1-n18-0l10h-a4n
Key Features
- 1The Festo VPPM-6L-L-1-N18-0L10H-A4N offers precise pressure regulation with a nominal diameter of 6 mm for pressurization and 4.5 mm for exhaust, ensuring stable and accurate control in your applications.
- 2This regulator is electrically actuated, providing easy control and integration with your existing systems. It features soft sealing and reverse polarity protection for all electrical connections.
- 3Designed to handle pressures from 0.1 to 10 bar, this regulator is versatile and suitable for various industrial settings, including the food and beverage industry and automotive test benches.
- 4With a standard nominal flow rate of 1,400 l/min and a maximum electrical power consumption of 7 W, this regulator ensures reliable performance and efficiency in your operations.
- 5The VPPM-6L-L-1-N18-0L10H-A4N meets stringent safety standards, including CE certification for EMC compliance and RCM mark, ensuring it operates safely in your environment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width pressurization | 6mm | Exhaust nominal width | 4.5mm |
| Actuation type | Electrical | Sealing principle | Soft |
| Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections | Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve | Display type | LED |
| Pressure regulation range MPa | 0.01MPa 1MPa | Pressure regulation range | 0.1bar 10bar |
| Inlet pressure 1 | 0bar 11bar | Inlet pressure 1 MPa | 0MPa 1.1MPa |
| Max. pressure hysteresis | 0.05bar | Standard nominal flow rate | 1400l/min |
| DC operating voltage range | 21.6V 26.4V | Max. current consumption | 300mA |
| Duty cycle | 100% | Max. electrical power consumption | 7W |
| Residual ripple | 10 % | Switching output | NPN |
| Analog output signal range | 4 - 20 mA | Analog input signal range | 4 - 20 mA |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
| Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E322346 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 10°C 50°C |
| Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
| Product weight | 400g | Linearity | 1%FS |
| Hysteresis | 0.5%FS | Reproducibility | 0.5%FS |
| Overall accuracy | 1.25 %FS | Temperature coefficient | 0.04%/K |
| Repetition accuracy FS | 0.5% | Electrical connection | 8-pin M12 Plug |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 2 | 1/8 NPT | Pneumatic connection 3 | 1/8 NPT |
| Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 542216 |
Specifications may be subject to change without notice
