Product Model

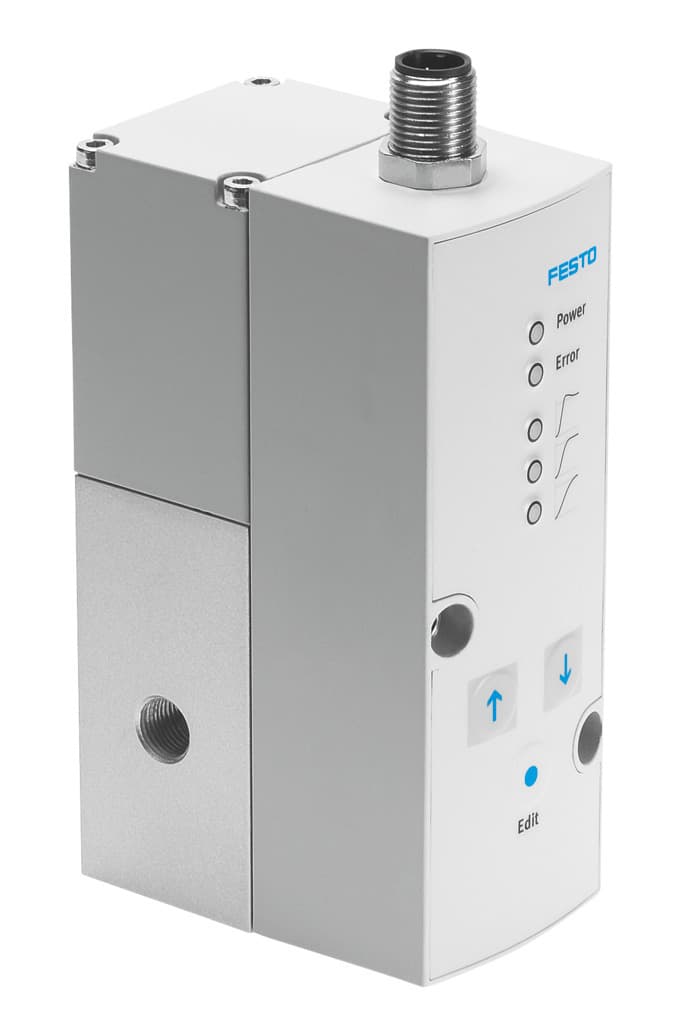

vppm-6l-l-1-g18-0l6h-v1n-s1
Key Features
- 1The Festo VPPM-6L-L-1-G18-0L6H-V1N-S1 offers precise control over airflow with a pressure regulation range of 0.006 MPa to 0.6 MPa, ensuring stable and efficient operation in various industrial settings.
- 2This valve features electrical actuation, providing a reliable and efficient method for controlling airflow. It operates within a DC voltage range of 21.6 V to 26.4 V, with a maximum current consumption of 300 mA.
- 3The VPPM-6L-L-1-G18-0L6H-V1N-S1 employs a soft sealing principle, ensuring minimal wear and tear while maintaining high precision in pressure control. This feature enhances the overall durability and reliability of the valve.
- 4The valve can be mounted in any position, offering flexibility in installation. It also supports optional through-hole mounting and comes with accessories for various configurations.
- 5With an overall accuracy of 1.25% FS and linearity of 1% FS, the Festo VPPM-6L-L-1-G18-0L6H-V1N-S1 ensures high precision in pressure regulation. It also features a hysteresis of 0.5% FS, ensuring consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width pressurization | 6mm | Exhaust nominal width | 4.5mm |
| Actuation type | Electrical | Sealing principle | Soft |
| Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections | Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve | Display type | LED |
| Pressure regulation range MPa | 0.006MPa 0.6MPa | Pressure regulation range | 0.06bar 6bar |
| Inlet pressure 1 | 0bar 8bar | Inlet pressure 1 MPa | 0MPa 0.8MPa |
| Max. pressure hysteresis | 0.03bar | Standard nominal flow rate | 900l/min |
| DC operating voltage range | 21.6V 26.4V | Max. current consumption | 300mA |
| Duty cycle | 100% | Max. electrical power consumption | 7W |
| Residual ripple | 10 % | Switching output | NPN |
| Analog output signal range | 0 - 10 V | Analog input signal range | 0 - 10 V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
| Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E322346 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 10°C 50°C |
| Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
| Product weight | 400g | Linearity | 1%FS |
| Hysteresis | 0.5%FS | Reproducibility | 0.5%FS |
| Overall accuracy | 1.25 %FS | Temperature coefficient | 0.04%/K |
| Repetition accuracy FS | 0.5% | Electrical connection | 8-pin M12 Plug |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy Anodized |
| Manufacturer ID | 542228 |
Specifications may be subject to change without notice
