Product Model

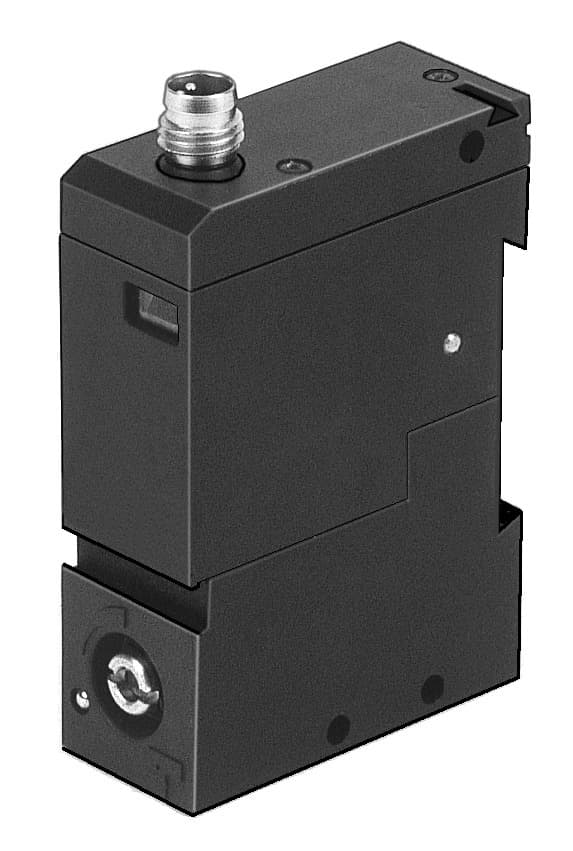

vpev-w-s-led-gh
Key Features
- 1The Festo VPEV-W-S-LED-GH vacuum switch offers precise relative pressure measurement, ensuring accurate monitoring of your system's pressure levels.
- 2With a pressure measuring range of -0.8 to -0.25 bar, this switch is versatile and suitable for various industrial applications.
- 3Built with high-quality materials like PA, PET, and POM, the VPEV-W-S-LED-GH is designed to withstand harsh environments and maintain its performance over time.
- 4Featuring a compact design with optional mounting options (through-hole or top-hat rail), the VPEV-W-S-LED-GH is easy to integrate into your existing setup.
- 5Equipped with a yellow LED for status indication and a changeover switch with hysteresis, this vacuum switch ensures safe and reliable operation in your industrial processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991472 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer | Pressure measuring range | -0.8bar -0.25bar |
| Operating pressure | -1bar 0bar | Max. overload pressure | 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Switching element function | Changeover switch | Hysteresis | 0.08bar 0.25bar |
| Max. switching frequency | 3Hz | Max. output current | 2500mA |
| DC operating voltage range | 10V 30V | Electrical connection | 4-pin M8x1 Plug |
| Type of mounting | Optionally: With through-hole With H-rail | Mounting position | Any |
| Pneumatic connection | M5 | Product weight | 56g |
| Housing material | PA PET POM | Diaphragm material | NBR |
| Switching status indication | LED yellow | Setting range threshold value | -0.8bar -0.25bar |
| Degree of protection | IP65 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 152617 |
Specifications may be subject to change without notice
