Product Model

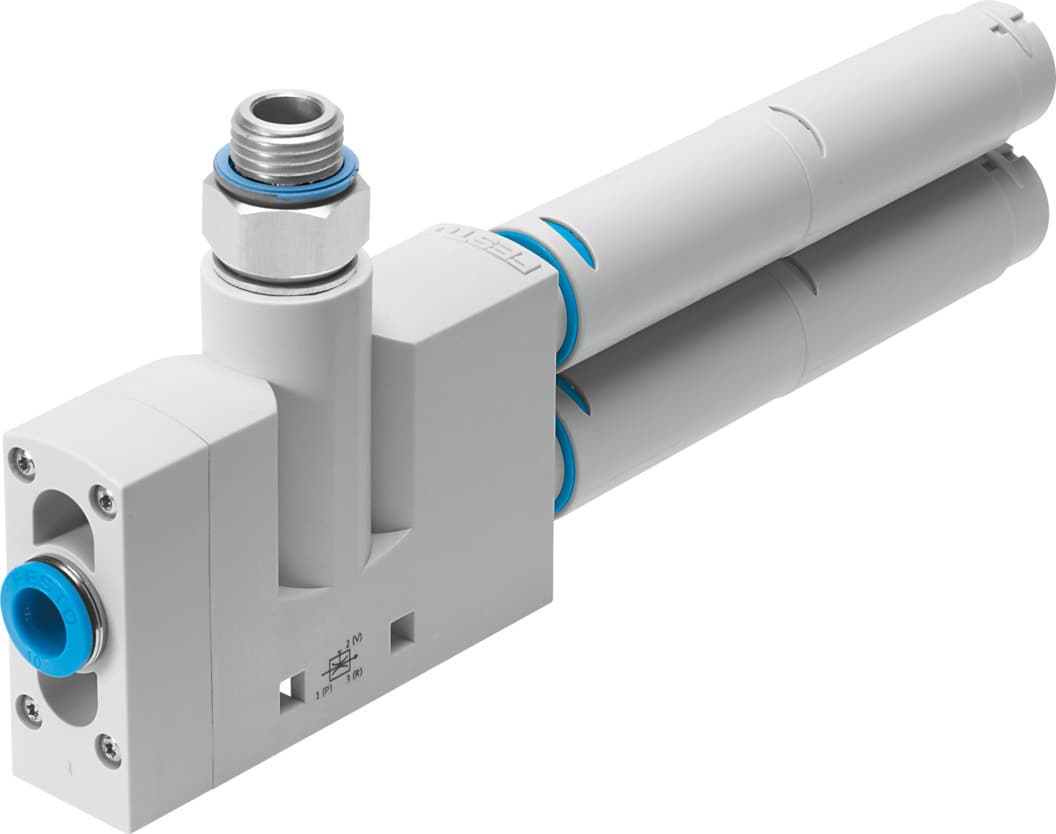

vn-30-h-t6-pq4-va5-ro2
Key Features
- 1The Festo VN-30-H-T6-PQ4-VA5-RO2 vacuum generator offers a high suction flow rate of 339 liters per minute, making it ideal for demanding applications.
- 2With a nominal size of 3 mm Laval nozzle and grid dimension of 24 mm, this vacuum generator is designed for space-efficient installations.
- 3The device operates within a pressure range of 1 to 8 bar, ensuring versatility in various industrial settings.
- 4Featuring a corrosion resistance class of CRC 1, the VN-30-H-T6-PQ4-VA5-RO2 is suitable for applications where low corrosion stress is critical.
- 5With an operating medium of compressed air to ISO 8573-1:2010, this vacuum generator ensures efficient operation and reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 3mm | Width dimension | 24mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 3bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 3.7bar | Max. vacuum | 93% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 186l/min |
| Air supply time at nominal operating pressure | 0.1s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 78dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.8Nm | Product weight | 189g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-10 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/4 |
| Material of connecting thread | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | Die-cast aluminum POM PU foam |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 526146 |
Specifications may be subject to change without notice
