Product Model

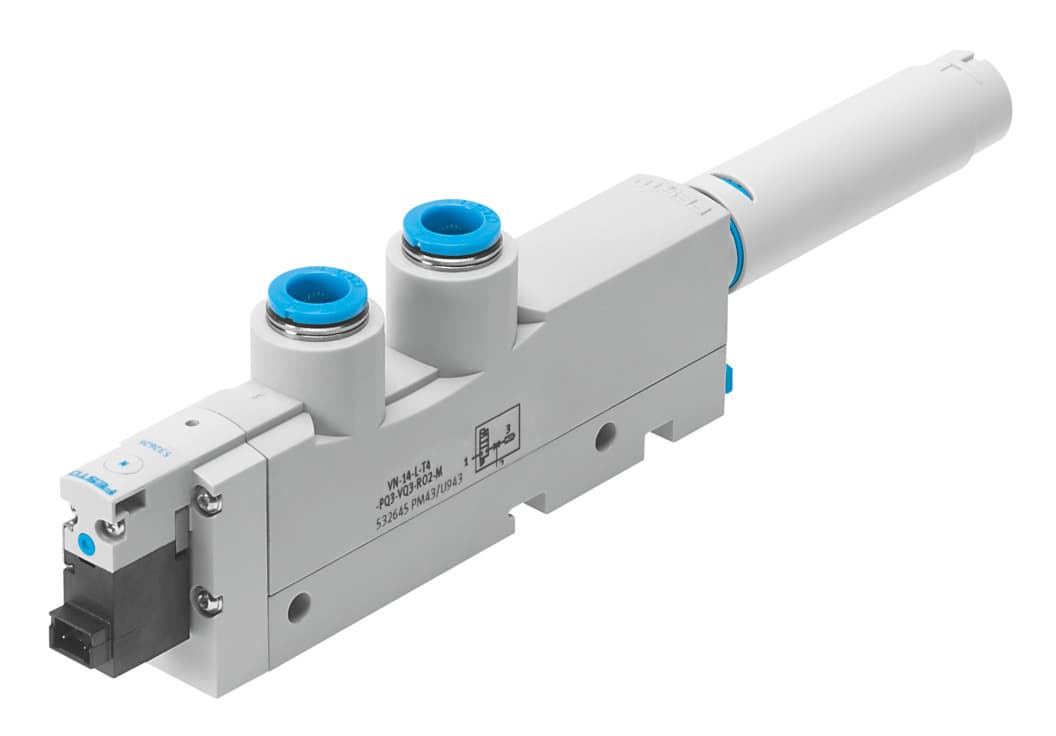

vn-14-h-t4-pq3-vq3-ro2-m
Key Features
- 1The Festo VN-14-H-T4-PQ3-VQ3-RO2-M vacuum generator is engineered to provide precise and efficient automation solutions for various industrial applications.
- 2With a nominal width of 1.4 mm and a width dimension of 18 mm, this vacuum generator offers standardized dimensions for easy integration into your existing systems.
- 3The VN-14-H-T4-PQ3-VQ3-RO2-M can be mounted in any position, providing flexibility in installation and use.
- 4This vacuum generator features standard ejector characteristics, ensuring reliable performance and consistent results.
- 5Find detailed technical data and specifications for the VN-14-H-T4-PQ3-VQ3-RO2-M on the official Festo website, including CAD data in multiple languages.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Width dimension | 18mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | Standard High negative pressure | Manual override | Non-detenting |
| Integrated function | Shut off valve, electric Pneumatic muffler open | Structural design | T-shape |
| Symbol | 00991492 | Valve function | 2/2 |
| Operating pressure for max. suction rate | 4bar | Operating pressure | 2bar 8bar |
| Operating pressure for max. vacuum | 3.5bar | Max. vacuum | 92% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 48.8l/min |
| Air supply time at nominal operating pressure | 0.5s | DC operating voltage range | 21.6V 26.4V |
| Electrical power consumption | 1.2W | Duty cycle | 100% |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | 0°C 50°C | Noise level at nominal operating pressure | 69dB(A) |
| Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
| Product weight | 98g | Electrical connection | Plug |
| Type of mounting | With through-hole With H-rail With accessories | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-8 |
| Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | PA-reinforced POM-reinforced | Muffler material | Wrought aluminum alloy POM PU foam |
| Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
| Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 532644 |
Specifications may be subject to change without notice
