Product Model

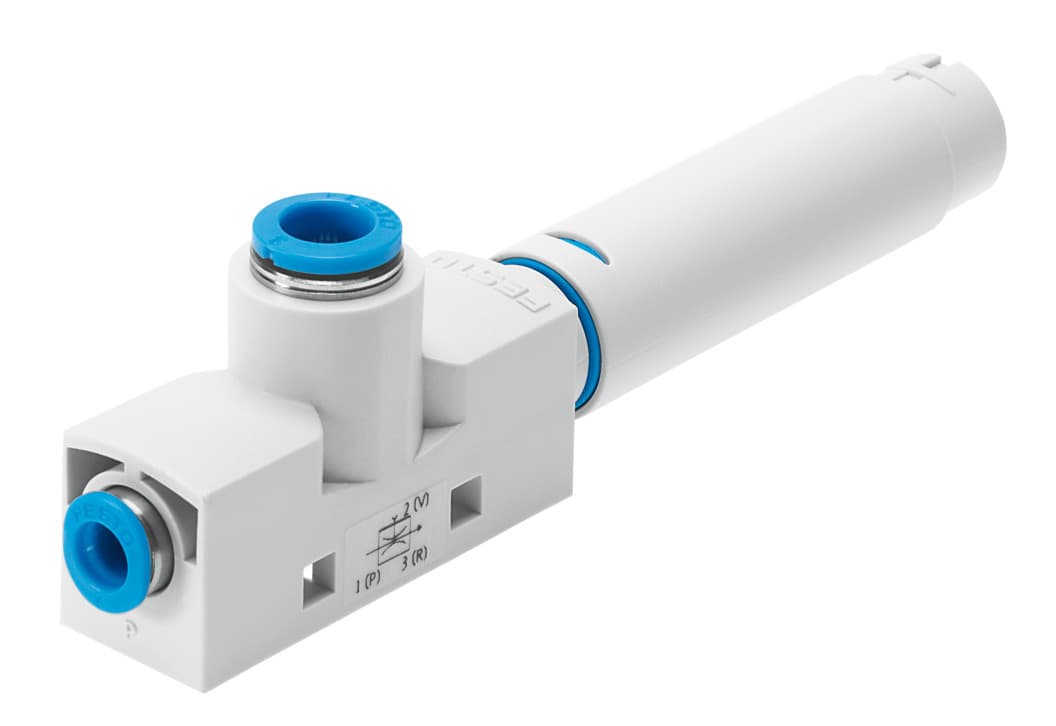

vn-14-h-t4-pq2-vq3-ro2-f1a
Key Features
- 1The VN-14-H-T4-PQ2-VQ3-RO2 vacuum generator delivers high vacuum performance with a maximum vacuum of 0.88 bar, making it suitable for demanding applications.
- 2This T-shaped vacuum generator features an open silencer and can be assembled in any position, offering flexibility in installation and integration.
- 3The device operates within a pressure range of 1 to 8 bar, ensuring consistent performance in various environments.
- 4With a maximum suction rate of 51.6 liters per minute, the VN-14-H-T4-PQ2-VQ3-RO2 is designed to handle high airflow requirements efficiently.
- 5The vacuum generator has a nominal size of 1.4 mm Laval nozzle and 18 mm grid dimension, making it compact and easy to integrate into systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Width dimension | 18mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 5.1bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 5bar | Max. vacuum | 88% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 51.6l/min |
| Air supply time at nominal operating pressure | 0.5s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Temperature of medium | 0°C 60°C | Noise level at nominal operating pressure | 69dB(A) |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 36g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | Pneumatic muffler open |
| Vacuum connection | QS-8 | Material of connecting thread | POM |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Muffler material | Wrought aluminum alloy POM PU foam | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 8187685 |
Specifications may be subject to change without notice
