Product Model

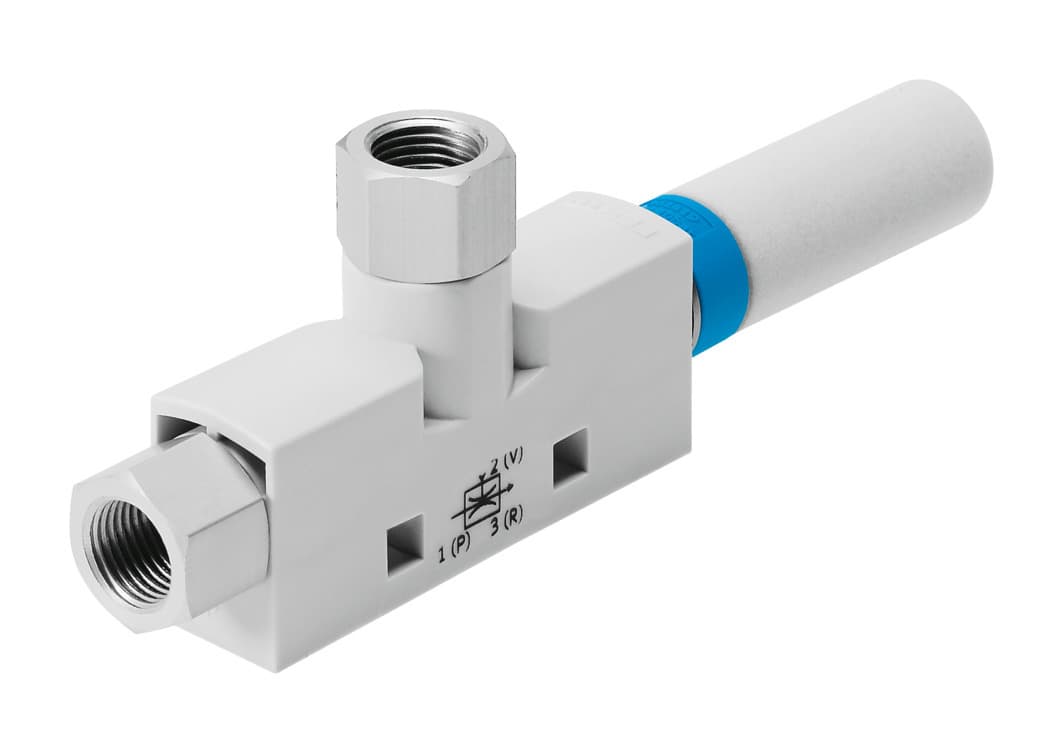

vn-10-l-t3-pi4-vi4-ro1
Key Features
- 1High Suction Rate: The Festo VN-10-L-T3-PI4-VI4-RO1 vacuum generator offers a high suction rate, making it suitable for demanding applications like lithium-ion battery production.
- 2Standard Ejector Characteristics: This vacuum generator features standard ejector characteristics, ensuring reliable performance in various industrial settings.
- 3Pneumatic Connection: Equipped with a G1/8 pneumatic connection, the VN-10-L-T3-PI4-VI4-RO1 is designed for easy integration into existing pneumatic systems.
- 4Robust Design: Constructed from anodized wrought aluminum alloy and featuring NBR material seals, this vacuum generator offers robustness and durability.
- 5Versatile Mounting Options: Available with through-hole, H-rail, and accessories mounting types, the VN-10-L-T3-PI4-VI4-RO1 provides flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.95mm | Width dimension | 14mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High suction rate Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 4bar | Operating pressure | 1bar 8bar |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 62.7l/min |
| Air supply time at nominal operating pressure | 0.46s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Noise level at nominal operating pressure | 73dB(A) | Ambient temperature | 0°C 60°C |
| Max. tightening torque | 0.5Nm | Product weight | 24g |
| Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
| Material of connecting thread | Wrought aluminum alloy, anodized Brass, nickel-plated | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Muffler material | PE |
| Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193592 |
Specifications may be subject to change without notice
