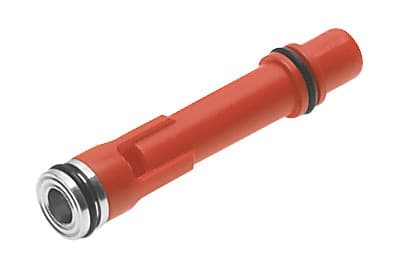

Product Model
vn-10-l
Key Features
- 1The Festo VN-10-L vacuum generator offers a maximum suction flow of 1.47 SCFM, making it ideal for applications requiring high airflow.
- 2Equipped with a silencer, this vacuum generator minimizes noise levels, ensuring a more comfortable working environment.
- 3The VN-10-L features an integrated monitor switch for easy operation and monitoring of the vacuum system.
- 4Available with optional mounting positions, the VN-10-L can be easily integrated into various industrial settings.
- 5Built with a standard high suction rate ejector characteristic, the VN-10-L provides reliable performance in demanding vacuum applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.95mm | Mounting position | Any |
| Ejector characteristics | Standard High suction volume | Symbol | 00991490 |
| Operating pressure | 1bar 8bar | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 41.5l/min | Air supply time at nominal operating pressure | 0.66s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Product weight | 1.65g | Seals material | NBR |
| Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 547698 |
Specifications may be subject to change without notice
