Product Model

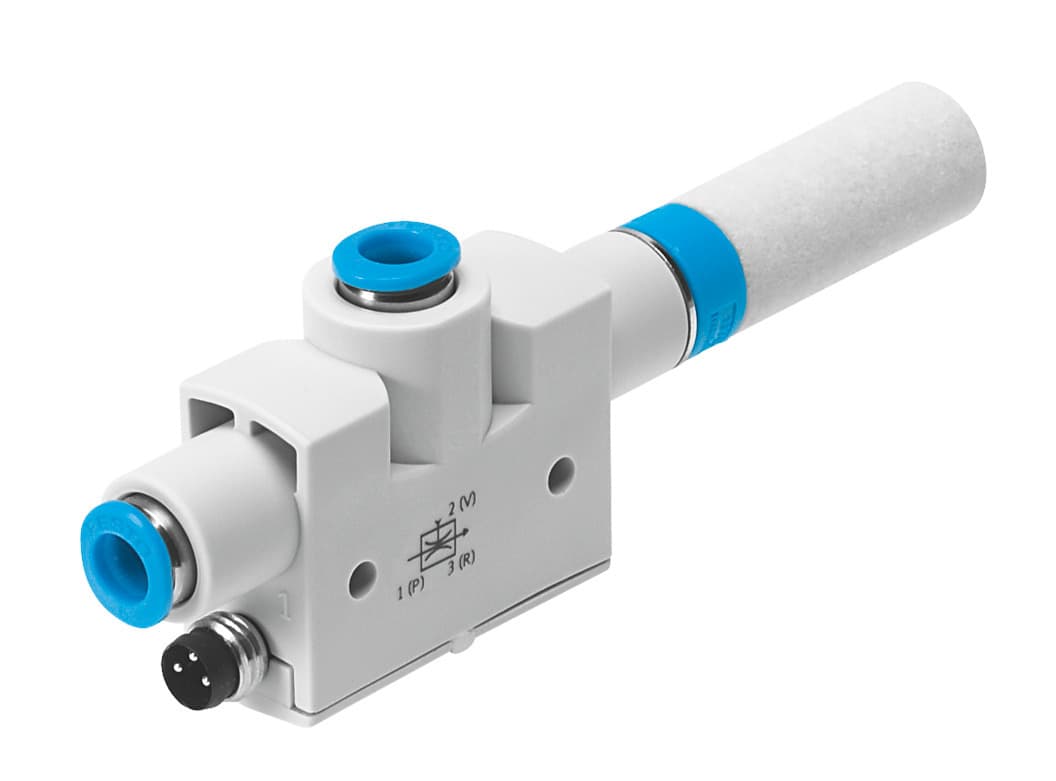

vn-10-h-t4-pq2-vq2-o2-p
Key Features
- 1The VN-10-H-T4-PQ2-VQ2-O2-P vacuum generator boasts a high suction rate, ensuring efficient operation in various industrial settings.
- 2Equipped with versatile connections including push-in fittings (PQ), female threads (VQ), and male threads (RO), this vacuum generator is adaptable to different systems.
- 3Designed for high performance, the VN-10-H-T4-PQ2-VQ2-O2-P vacuum generator is ideal for applications requiring rapid vacuum generation and reliable operation.
- 4This product conforms to ISO 1179-1 and ISO 228-1 standards, ensuring compatibility with a wide range of industrial systems.
- 5The vacuum generator can be easily integrated into existing systems due to its standardized dimensions and connections, making it a convenient addition to any setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.95mm | Width dimension | 16mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Integrated function | Pressure sensor Pneumatic muffler open |
| Structural design | T-shape | Short-circuit protection | Pulsed |
| Measured variable | Relative pressure | Measuring principle | Piezoresistive |
| Method of measurement | Relative | Switching element function | N/O contact |
| Switching function | Threshold value comparator Threshold value with variable hysteresis | Symbol | 00991917 |
| Reverse polarity protection | for all electrical connections | Display type | LED |
| Setting range threshold value | -1bar 0bar | Setting options | Teach-in |
| Switching status indication | LED | Threshold value setting range | -14.5psi 0psi |
| Operating pressure for max. suction rate | 43.5psi | Operating pressure | 14.5psi 116psi |
| Operating pressure for max. vacuum | 50.75psi | Max. vacuum | 93% |
| Nominal operating pressure | 87psi | Max. suction rate with respect to atmosphere | 21.8l/min |
| Switch-off time | 4ms | On time | 4ms |
| DC operating voltage range | 15V 30V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
| Max. output current | 100mA | Residual current | 0.3mA |
| Residual ripple | 10 % | Switching output | PNP |
| Voltage drop | 1.5V | Overload protection | Available |
| Certification | RCM compliance mark | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0°C 60°C | Cleaning advice | Soap suds |
| Noise level at nominal operating pressure | 70dB(A) | Degree of protection | IP40 |
| Ambient temperature | 0°C 50°C | Max. tightening torque | 0.6Nm |
| Pressure measuring range | -14.5psi 0psi | Product weight | 36g |
| Accuracy in ± % FS | 1.5%FS | Long-term drift | ±0.5 % FS max. |
| Temperature coefficient of switching point | 0.05%/K | Electrical connection | 3-pin M8 |
| Type of mounting | With through-hole | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-6 |
| Seals material | NBR | Female nozzle material | POM |
| Housing material | POM-reinforced | Fiber-optic cable | PC |
| Muffler material | PE | Material of plug housing | Brass PA Chrome-plated and nickel-plated |
| Material of jet nozzle | Wrought aluminum alloy | Material of keypad | POM |
| Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 536805 |
Specifications may be subject to change without notice
