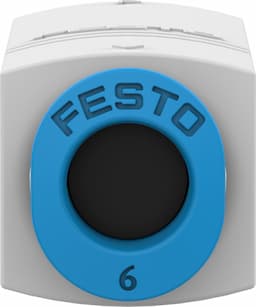

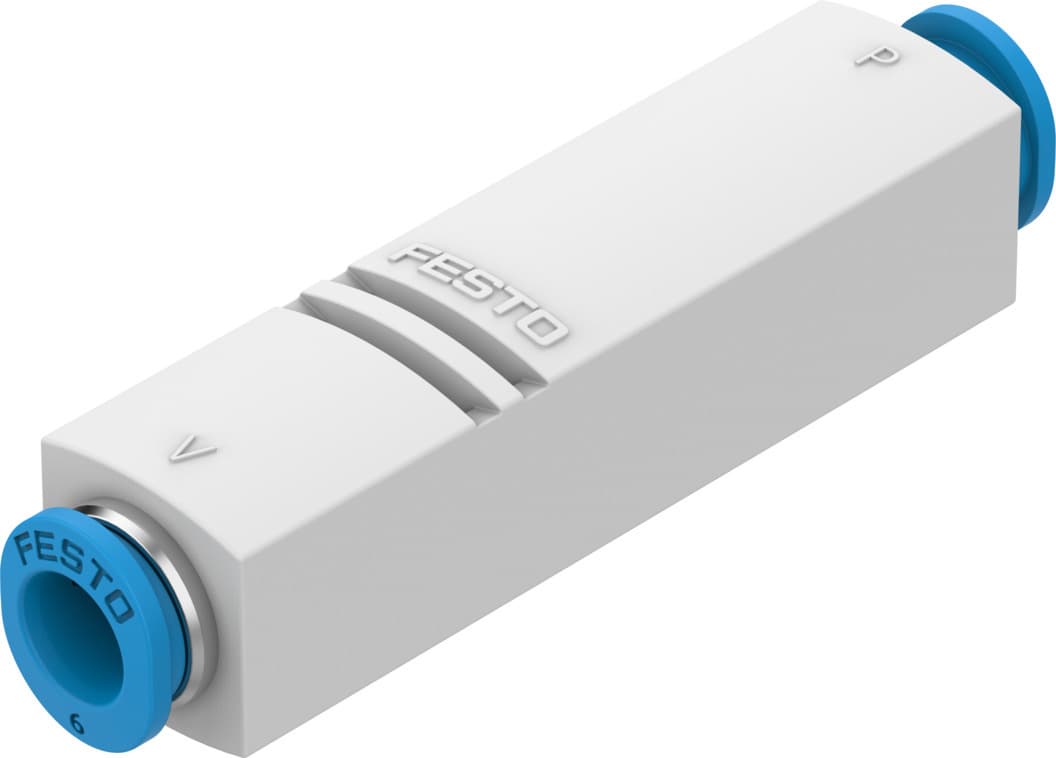

Product Model
vn-07-m-i3-pq2-vq2
Key Features
- 1The Festo VN-07-M-I3-PQ2-VQ2 vacuum generator delivers high vacuum performance, making it suitable for demanding applications.
- 2With a width of 10 mm, this vacuum generator is designed to be compact and space-efficient, perfect for integration into various systems.
- 3Equipped with a plug connector, the VN-07-M-I3-PQ2-VQ2 offers easy and secure connections, reducing setup time and ensuring reliable operation.
- 4This vacuum generator can be used in a variety of applications, including inline configurations, making it a versatile solution for different needs.
- 5Built with high-quality materials, the VN-07-M-I3-PQ2-VQ2 ensures long-lasting performance and consistent results in high vacuum environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 13mm |
| Mounting position | Any | Ejector characteristics | High vacuum Inline |
| Structural design | Straight design | Symbol | 00991491 |
| Operating pressure for max. suction rate | 7bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 5.8bar | Max. vacuum | 86% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 13.5l/min |
| Air supply time at nominal operating pressure | 2s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Product weight | 16g |
| Type of mounting | Line installation | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 3 | Not ducted | Vacuum connection | QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193553 |
Specifications may be subject to change without notice
