Product Model
vn-07-m-i2-pq1-vt1
Key Features

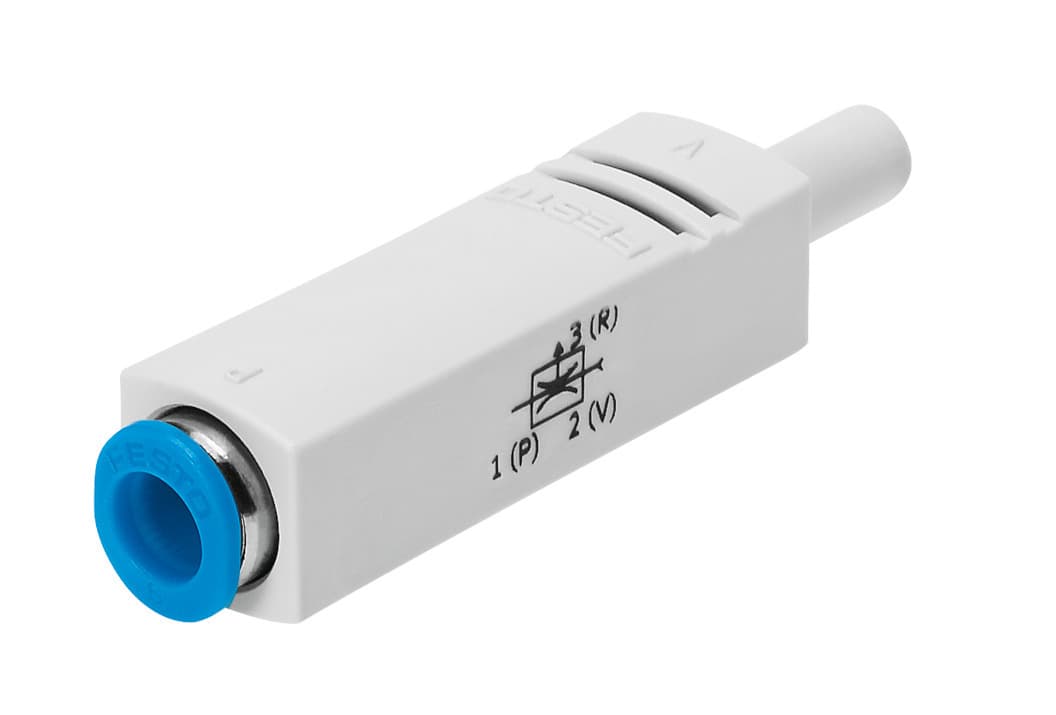

- 1The VN-07-M-I2-PQ1-VT1 vacuum generator delivers high vacuum performance with a nominal size of 0.7 mm and a maximum vacuum of 86%.
- 2This in-line vacuum generator features a compact design with a width of 14 mm, making it perfect for space-constrained applications.
- 3Equipped with plug connectors and push-in sleeves, the VN-07-M-I2-PQ1-VT1 offers easy and versatile pneumatic connections.
- 4The vacuum generator operates within a range of 1 to 8 bar and can achieve a maximum suction rate of 13.5 l/min.
- 5Made from materials like POM-reinforced housing, NBR seals, and wrought aluminum alloy, the VN-07-M-I2-PQ1-VT1 ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 10mm |
| Mounting position | Any | Ejector characteristics | High vacuum Inline |
| Structural design | Straight design | Symbol | 00991491 |
| Operating pressure for max. suction rate | 7bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 5.8bar | Max. vacuum | 86% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 13.5l/min |
| Air supply time at nominal operating pressure | 2s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Product weight | 8g |
| Type of mounting | Line installation | Pneumatic connection 1 | QS-4 |
| Pneumatic connection 3 | Not ducted | Vacuum connection | Push-in sleeve QS-4 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193588 |
Specifications may be subject to change without notice
