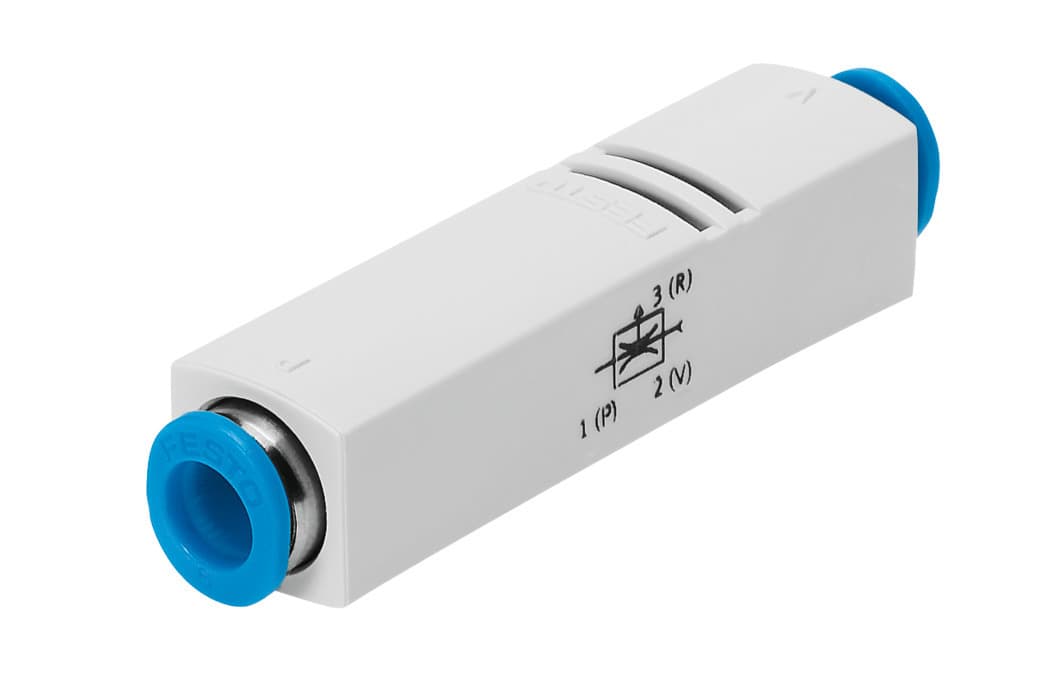

vn-07-m-i2-pq1-vq1
Key Features
- 1The Festo VN-07-M-I2-PQ1-VQ1 is designed for high vacuum applications, ensuring optimal suction rates and pressure control.
- 2With a width of 10 mm, this vacuum generator is ideal for space-constrained environments, making it perfect for inline installations.
- 3Equipped with a plug connector, the VN-07-M-I2-PQ1-VQ1 offers easy and secure connections, reducing setup time and ensuring reliable operation.
- 4This vacuum generator operates within a wide pressure range (1 to 8 bar) and can achieve a maximum vacuum of 86%, catering to various industrial needs.
- 5Constructed from materials like POM-reinforced housing, NBR seals, and wrought aluminum alloy nozzles, the VN-07-M-I2-PQ1-VQ1 ensures long-lasting performance and minimal maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 10mm |
| Mounting position | Any | Ejector characteristics | High vacuum Inline |
| Structural design | Straight design | Symbol | 00991491 |
| Operating pressure for max. suction rate | 7bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 5.8bar | Max. vacuum | 86% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 13.5l/min |
| Air supply time at nominal operating pressure | 2s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Product weight | 11g |
| Type of mounting | Line installation | Pneumatic connection 1 | QS-4 |
| Pneumatic connection 3 | Not ducted | Vacuum connection | QS-4 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193586 |
