Product Model

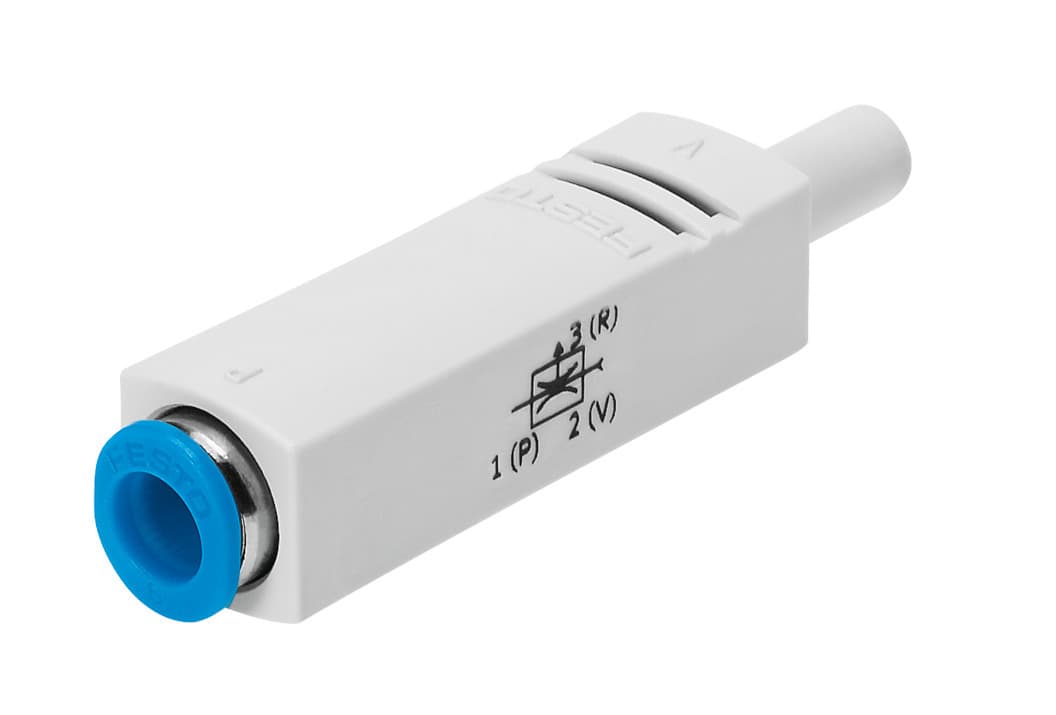

vn-05-m-i3-pq2-vt2
Key Features
- 1The VN-05-M-I3-PQ2-VT2 offers a maximum vacuum of 86% and an operating pressure of 6 bar, ensuring high suction rates for efficient operation.
- 2With a width of 14 mm, this vacuum generator is designed for in-line installations, making it perfect for space-constrained environments.
- 3Equipped with a plug connector and push-in sleeve, the VN-05-M-I3-PQ2-VT2 provides flexible connection options to suit various pneumatic systems.
- 4Made from materials that are free of copper and PTFE, this generator conforms to RoHS standards, ensuring environmental safety and compliance.
- 5Operating within a temperature range of 0 to 60°C, the VN-05-M-I3-PQ2-VT2 ensures reliable performance in diverse operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.45mm | Width dimension | 13mm |
| Mounting position | Any | Ejector characteristics | High vacuum Inline |
| Structural design | Straight design | Symbol | 00991491 |
| Operating pressure for max. suction rate | 6.3bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 6bar | Max. vacuum | 86% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 6.1l/min |
| Air supply time at nominal operating pressure | 4.7s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Product weight | 12g |
| Type of mounting | Line installation | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 3 | Not ducted | Vacuum connection | Push-in sleeve QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
| Manufacturer ID | 193555 |
Specifications may be subject to change without notice
