Product Model

vn-05-m-i3-pq2-vq2

Manufacturer

Festo

Key Features

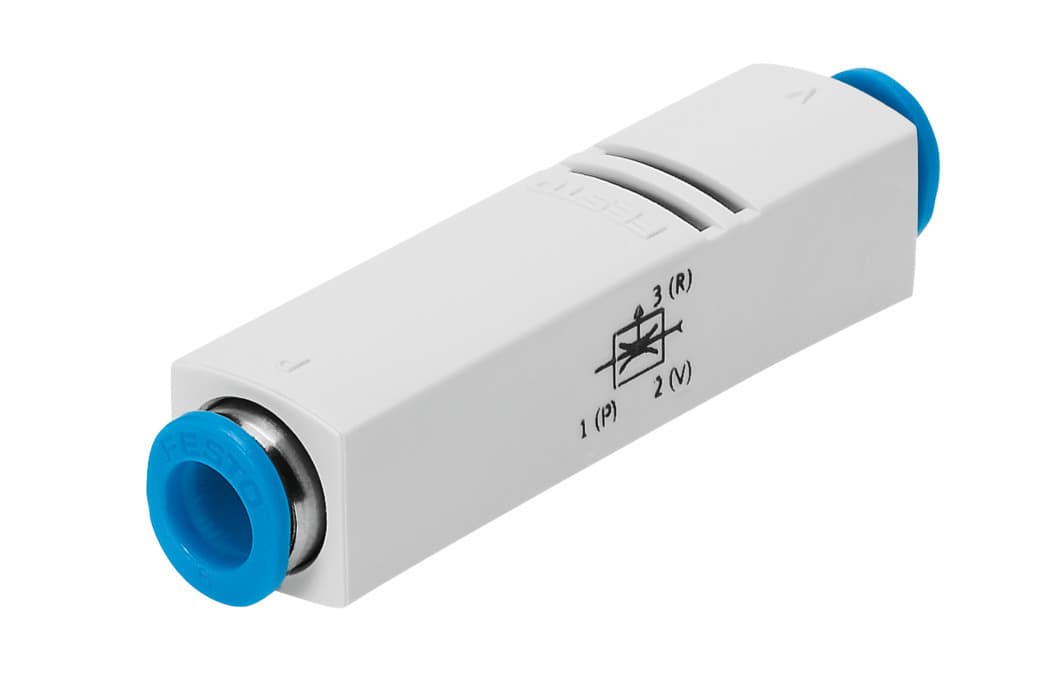

1The Festo VN-05-M-I3-PQ2-VQ2 is engineered for high vacuum applications, ensuring optimal performance in demanding environments.
2With a width of 10 mm, this vacuum generator is designed to be compact and space-efficient, ideal for integration into various pneumatic systems.
3Equipped with a plug connector, the VN-05-M-I3-PQ2-VQ2 offers a convenient and reliable connection method for easy installation.
4The vacuum generator features a Laval nozzle with a nominal size of 0.45 mm and a grid dimension of 13 mm, providing precise control over airflow.
5The VN-05-M-I3-PQ2-VQ2 can be assembled in any position, offering flexibility in system design and installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Nominal width of Laval nozzle	0.45mm	Width dimension	13mm
Mounting position	Any	Ejector characteristics	High vacuum Inline
Structural design	Straight design	Symbol	00991491
Operating pressure for max. suction rate	6.3bar	Operating pressure	1bar 8bar
Operating pressure for max. vacuum	6bar	Max. vacuum	86%
Nominal operating pressure	6bar	Max. suction rate with respect to atmosphere	6.1l/min
Air supply time at nominal operating pressure	4.7s	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication not possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	0°C 60°C
Ambient temperature	0°C 60°C	Product weight	16g
Type of mounting	Line installation	Pneumatic connection 1	QS-6
Pneumatic connection 3	Not ducted	Vacuum connection	QS-6
Note on materials	RoHS-compliant	Seals material	NBR
Female nozzle material	POM	Housing material	POM-reinforced
Material of jet nozzle	Wrought aluminum alloy	Material of pneumatic fitting	Brass Nickel-plated
Manufacturer ID	193552
