Product Model
vn-05-h-t3-pq2-vq2-ro1-f1a
Key Features

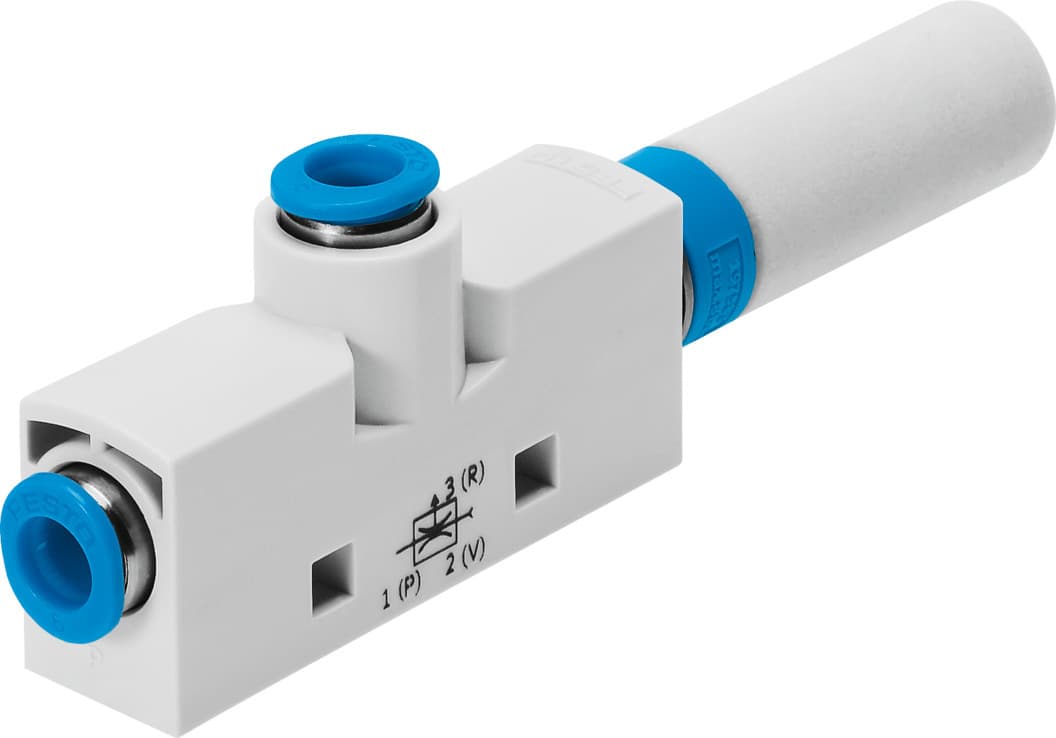

- 1The Festo VN-05-H-T3-PQ2-VQ2-RO1-F1A vacuum generator offers high reliability, ensuring consistent performance in various industrial applications.
- 2This vacuum generator is designed to be compact, making it easy to integrate into tight spaces without compromising on functionality.
- 3With its advanced technology, the VN-05-H-T3-PQ2-VQ2-RO1-F1A provides efficient operation, reducing energy consumption and increasing productivity.
- 4The vacuum generator is designed for easy installation, minimizing setup time and ensuring quick deployment in your automation system.
- 5Constructed from high-quality materials, the VN-05-H-T3-PQ2-VQ2-RO1-F1A ensures durability and longevity, reducing maintenance needs over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
| Structural design | T-shape | Symbol | 00991489 |
| Operating pressure for max. suction rate | 2.1bar | Operating pressure | 1bar 8bar |
| Operating pressure for max. vacuum | 4.5bar | Max. vacuum | 88% |
| Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 6.2l/min |
| Air supply time at nominal operating pressure | 4.8s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Temperature of medium | 0°C 60°C | Noise level at nominal operating pressure | 53dB(A) |
| Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
| Product weight | 24g | Type of mounting | With through-hole With accessories |
| Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | Pneumatic muffler open |
| Vacuum connection | QS-6 | Material of connecting thread | POM |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Female nozzle material | POM | Housing material | POM-reinforced |
| Muffler material | PE | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 8187682 |
Specifications may be subject to change without notice
