Product Model

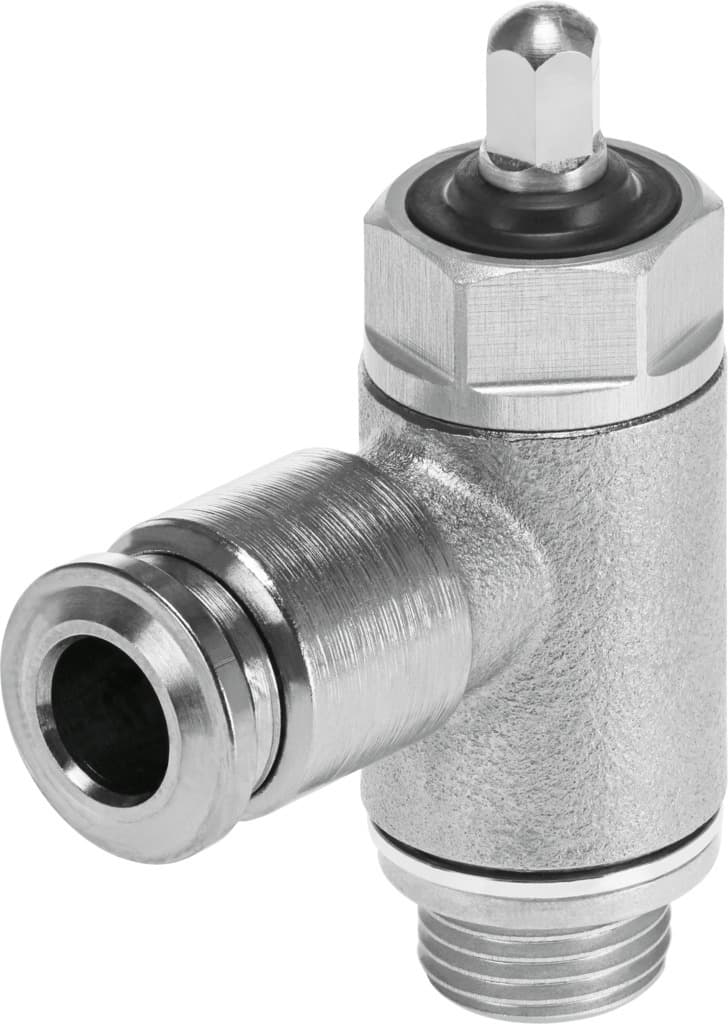

vfoh-le-a-g18-q6
Key Features
- 1Efficient Exhaust Air Control: One-way flow control function for exhaust air.
- 2Manual Actuation: Easy to operate with manual actuation.
- 3External Hex Adjustment: Convenient adjustment with an external hex.
- 4High Flow Rates: Standard nominal flow rate in flow control direction: 255 l/min.
- 5Durable Construction: Compatible with operating pressures up to 10 bar and temperatures up to 150 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | G1/8 | Actuation type | Manual |
| Adjusting element | External hexagon | Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 255l/min | Standard nominal flow rate in non-return direction | 111l/min 280l/min |
| Ambient temperature | 0°C 150°C | Mounting position | Any |
| Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 370l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 330l/min 390l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 150°C |
| Temperature of medium | 0°C 150°C | Nominal tightening torque | 3Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 23g |
| Note on materials | RoHS-compliant | Seals material | FPM |
| Hollow bolt material | Wrought aluminum alloy | Releasing ring material | Brass, nickel-plated |
| Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Brass Nickel-plated |
| Manufacturer ID | 578798 |
