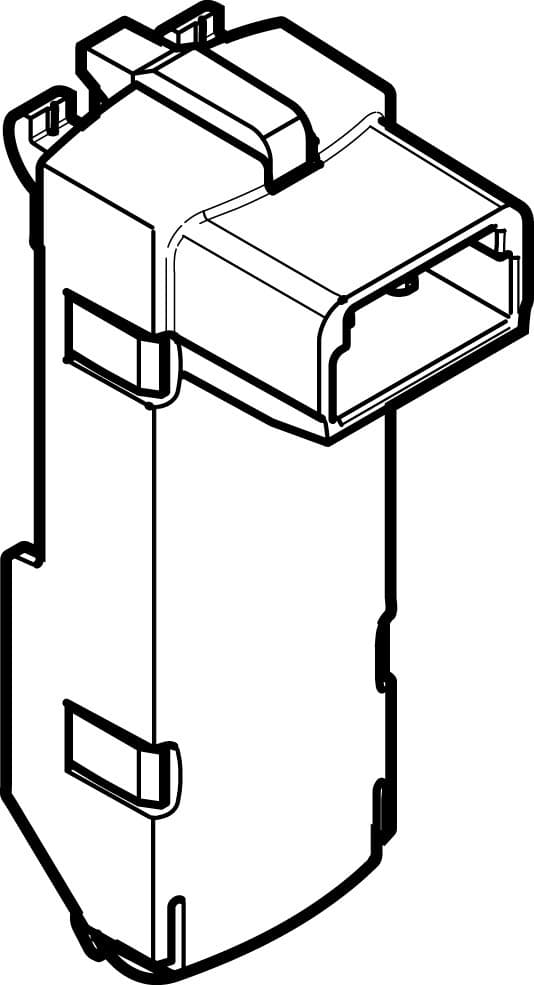

Product Model
vave-l1-1vs2-lp
Key Features
- 1Bipolar reverse polarity protection for enhanced safety.
- 2Spark arresting additional functions for reliable operation.
- 3LED signal status display for clear monitoring.
- 424V and 12V nominal operating voltages for versatile use.
- 50.8KV immunity to surge and IP40 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | Bipolar | Additional functions | Spark suppression |
| Signal status display | LED | Nominal operating voltage DC | 12V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Extended ambient temperature | -5 - 60 °C | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
| Ambient temperature | -5°C 50°C | Mounting position | Any |
| Product weight | 1.5g | Electrical connection | 2-pin Socket |
| Protective earth connection | Not available | Type of mounting | Clip |
| Housing colour | Black | Note on materials | RoHS-compliant |
| Housing material | PA | Manufacturer ID | 566718 |
Specifications may be subject to change without notice
