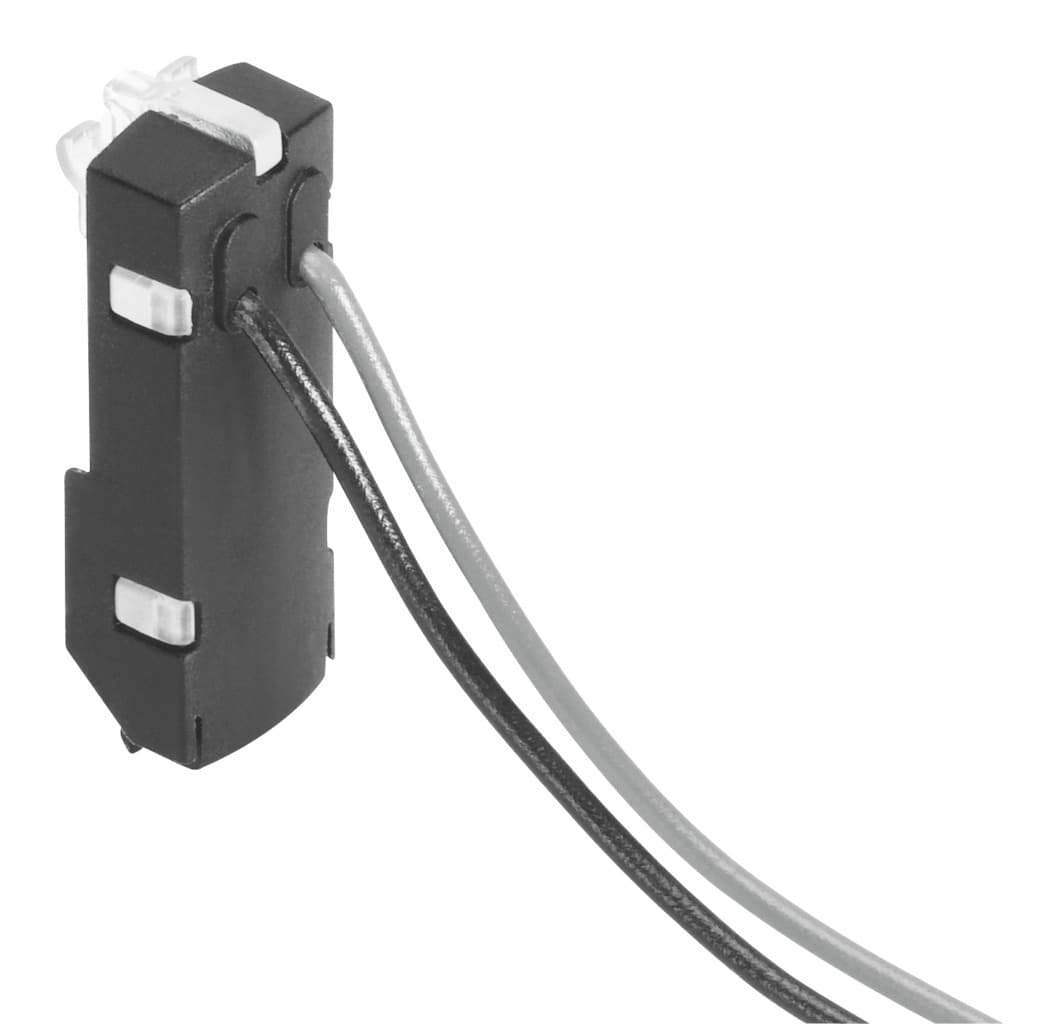

Product Model
vave-l1-1vl1-lp
Key Features
- 1Bipolar Reverse Polarity Protection: Safeguards against incorrect polarity connections.
- 2Spark Arresting Function: Prevents electrical sparks for enhanced safety.
- 3LED Signal Status Display: Visual indication of signal status for easy monitoring.
- 4High Surge Resistance: Withstands up to 0.8 kV surge strength for reliable operation.
- 5Extended Ambient Temperature Range: Operates from -5°C to 60°C for versatile use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | Bipolar | Additional functions | Spark suppression |
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Extended ambient temperature | -5 - 60 °C | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
| Ambient temperature | -5°C 50°C | Mounting position | Any |
| Product weight | 4.6g | Connection cross section | 0.14mm2 |
| Electrical connection | Flying lead | Cable length | 0.5m |
| Wire ends | Cable end sleeve | Protective earth connection | Not available |
| Type of mounting | Clip | Housing colour | Black |
| Note on materials | RoHS-compliant | Housing material | PA |
| Manufacturer ID | 566722 |
Specifications may be subject to change without notice
