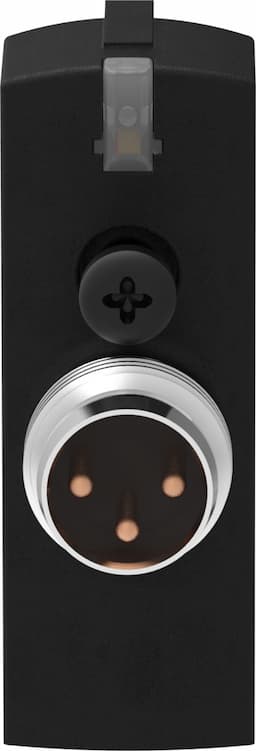

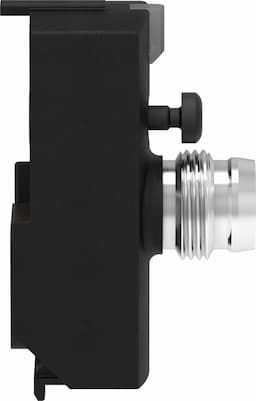

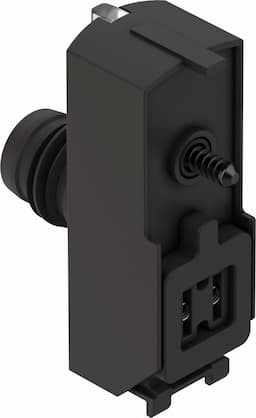

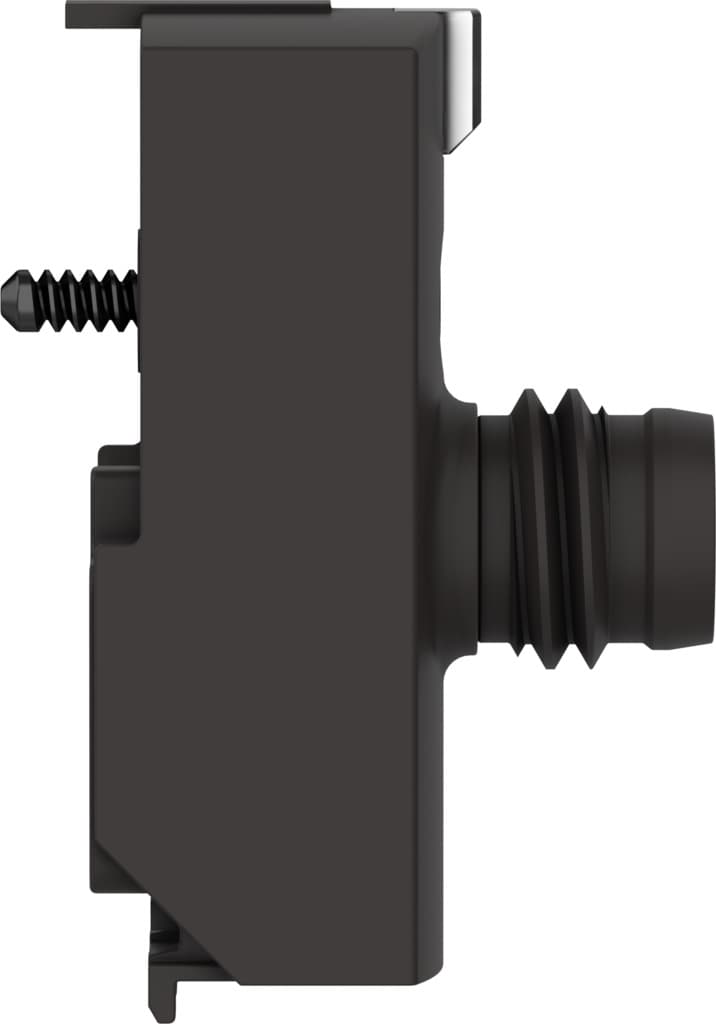

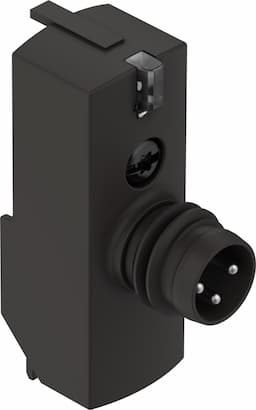

Product Model
vave-l1-1r8-lr
Key Features
- 1Bipolar protection ensures safe operation.
- 2Reduces sparks during electrical connections.
- 3Visual confirmation of signal status.
- 40.8 kV surge strength for reliable performance.
- 5Dust and water-resistant housing for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | Bipolar | Additional functions | Spark suppression Holding current reduction |
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Degree of protection | IP65 |
| Ambient temperature | -5°C 60°C | Mounting position | Any |
| Max. tightening torque | 0.27Nm | Product weight | 3.2g |
| Electrical connection | 3-pin/2-pin M8 / - Plug/socket | Protective earth connection | Not available |
| Type of mounting | On air solenoid valve with self-tapping screw | Housing colour | Black |
| Note on materials | RoHS-compliant | Cover material | PA |
| Seals material | EPDM | Housing material | PA |
| Material of screws | Tempered steel | Manufacturer ID | 573920 |
Specifications may be subject to change without notice
