Product Model

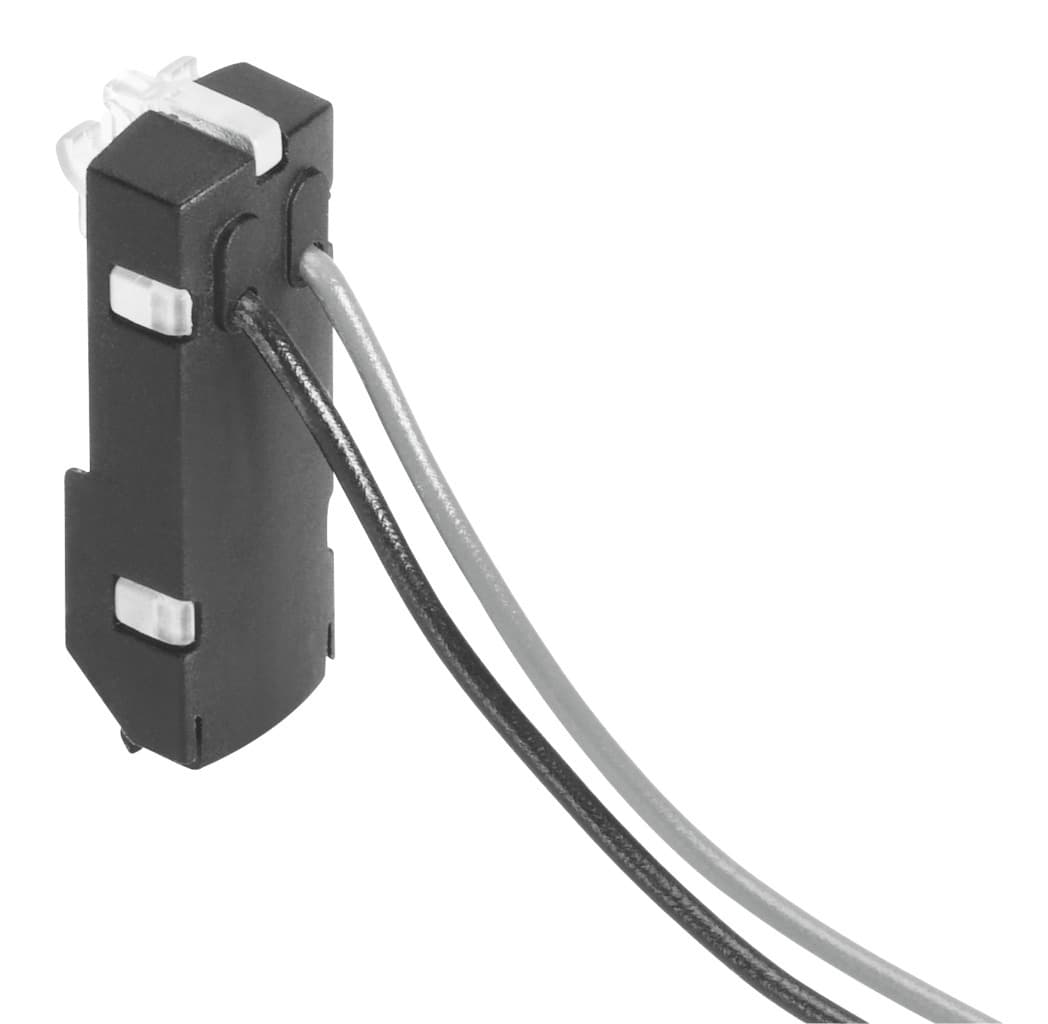

vave-l1-1l4-lr
Key Features
- 1Safeguards against electrical damage.
- 2Prevents sparks and ensures safe operation.
- 3Reduces power consumption for energy efficiency.
- 4Provides clear visual feedback on device status.
- 5Ensures reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | for operating voltage | Additional functions | Spark suppression Holding current reduction |
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
| Ambient temperature | -5°C 60°C | Mounting position | Any |
| Product weight | 33.5g | Connection cross section | 0.14mm2 |
| Electrical connection | Flying lead | Cable length | 5m |
| Wire ends | Cable end sleeve | Protective earth connection | Not available |
| Type of mounting | Clip | Housing colour | Black |
| Note on materials | RoHS-compliant | Housing material | PA |
| Manufacturer ID | 566729 |
Specifications may be subject to change without notice
