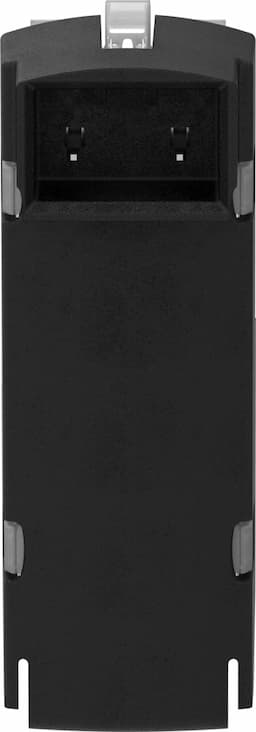

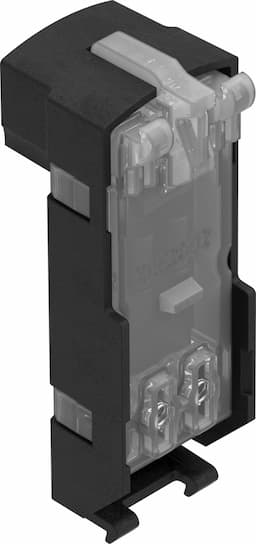

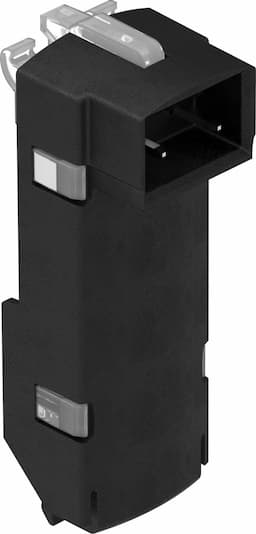

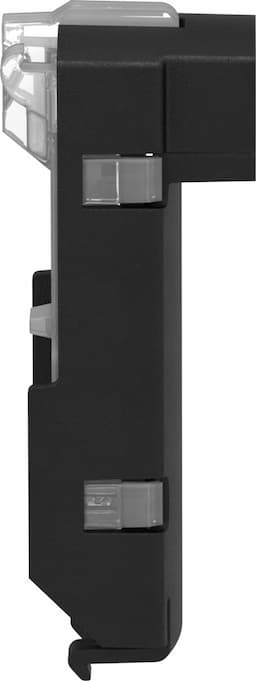

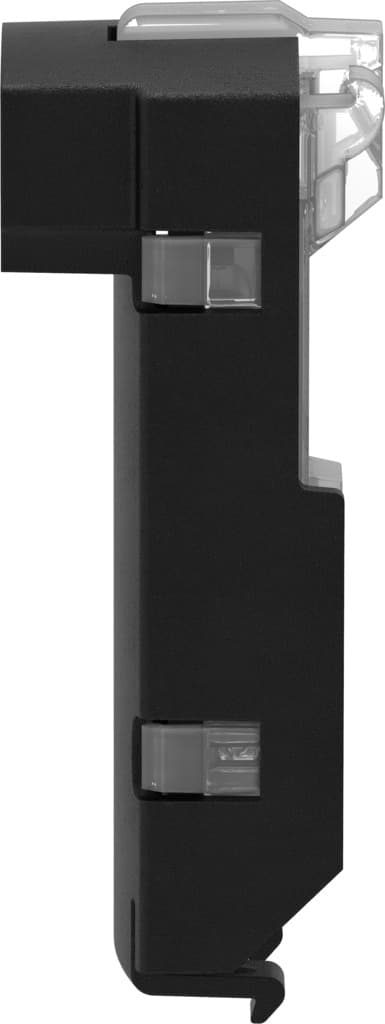

Product Model
vave-l1-1h2-lr
Key Features
- 1Reverse Polarity Protection: Safeguards against incorrect voltage connections.
- 2Spark Arresting: Reduces electrical noise and ensures reliable operation.
- 3LED Signal Status Display: Provides clear visual feedback on the device's status.
- 4Nominal Operating Voltage DC: Designed for 24V DC operation, suitable for various industrial settings.
- 5Surge Strength: Withstands up to 0.8 kV surge strength for added reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Reverse polarity protection | for operating voltage | Additional functions | Spark suppression Holding current reduction |
| Signal status display | LED | Nominal operating voltage DC | 24V |
| Surge resistance | 0.8kV | Contamination level | 3 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
| Ambient temperature | -5°C 60°C | Mounting position | Any |
| Product weight | 1.5g | Electrical connection | 2-pin Socket |
| Protective earth connection | Not available | Type of mounting | Clip |
| Housing colour | Black | Note on materials | RoHS-compliant |
| Housing material | PA | Manufacturer ID | 566716 |
Specifications may be subject to change without notice
