Product Model
vasb-8-m5-si-b
Key Features

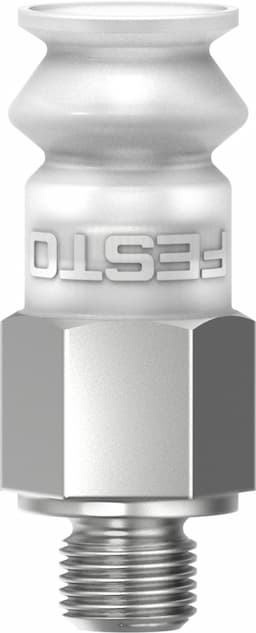

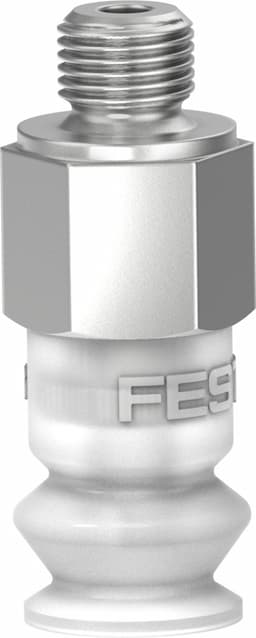

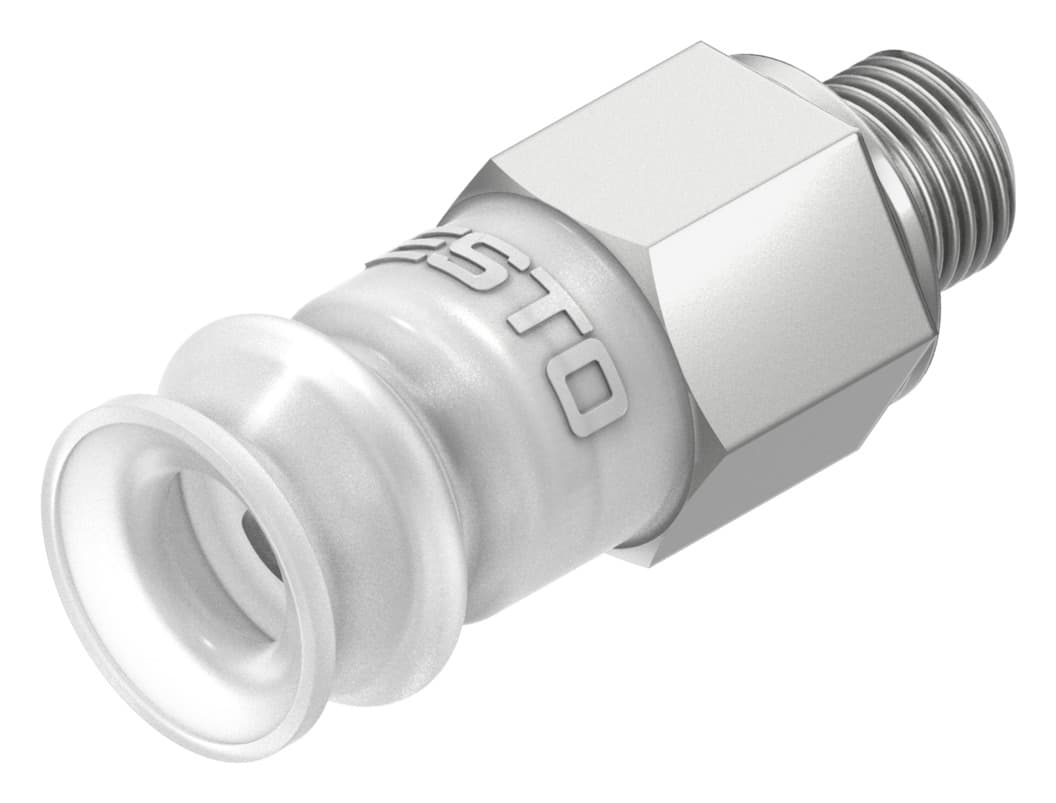

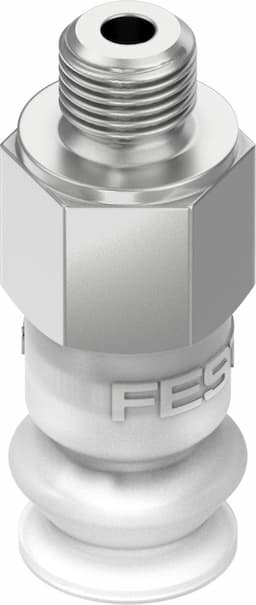

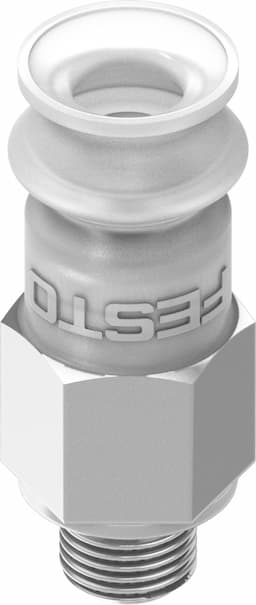

- 1The Festo VASB-8-M5-SI-B suction cup is designed for high-precision vacuum applications, ensuring reliable performance in various industrial settings.
- 2This suction cup features a robust and durable construction, making it suitable for demanding tasks in manufacturing and automation.
- 3The VASB-8-M5-SI-B offers versatile mounting options, allowing for easy integration into different systems and applications.
- 4Festo's commitment to quality ensures that the VASB-8-M5-SI-B suction cup meets stringent standards, providing consistent performance over time.
- 5With its advanced design, the VASB-8-M5-SI-B suction cup enhances efficiency and productivity in various industrial processes, making it an ideal choice for automation solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 3.3mm | Nominal width | 2mm |
| Suction cup diameter | 8mm | Suction cup volume | 0.163cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 2.6N |
| Product weight | 4g | Type of mounting | Via vacuum connection |
| Vacuum connection | M5 | Color | Transparent |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 1394696 |
Specifications may be subject to change without notice
