Product Model

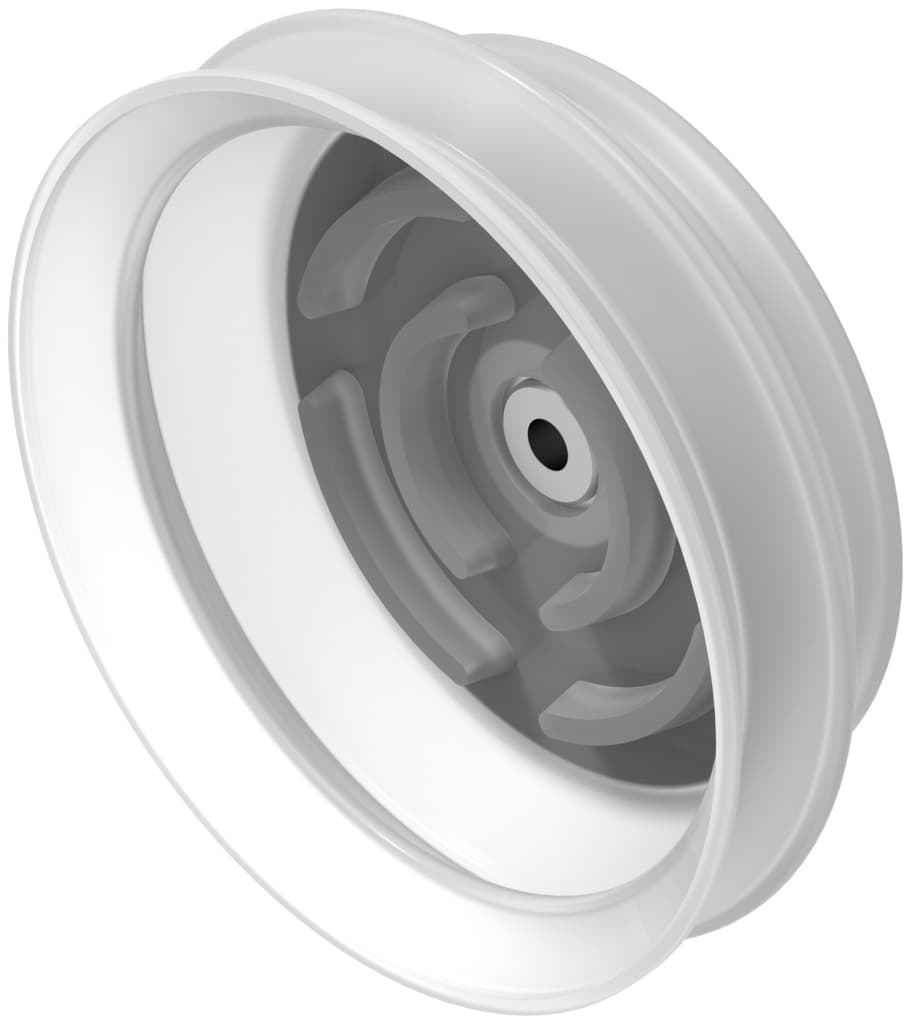

vasb-125-3/8-si-b

Manufacturer

Festo

Key Features

1The Festo Vasb-125-3/8-Si-B is designed for high-precision automation, ensuring accurate and reliable performance in various industrial applications.
2This product features a range of adjustable parameters, including system parameters, module parameters, and diagnostic memory settings, which can be customized using Festo's software or higher-order controllers.
3Built with robust components, the Vasb-125-3/8-Si-B offers durability and long-lasting operation, making it a reliable choice for demanding industrial environments.
4The automation system can be easily parameterized using Festo's software or higher-order controllers, allowing for quick setup and configuration without complex wiring.
5Festo provides comprehensive support and documentation for the Vasb-125-3/8-Si-B, including detailed descriptions and error numbers, ensuring seamless integration and troubleshooting.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Suction cup height compensation	25mm	Nominal width	7mm
Suction cup diameter	125mm	Suction cup volume	307cm3
Connection position	Top	Mounting position	Any
Symbol	00991485	Suction cup shape	Round bellows, 1.5 convolutions
Operating pressure	-13.775psi 0psi	Nominal operating pressure	-10.15psi
Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III	For use in the food industry	See supplementary material information
Ambient temperature	-40°C 200°C	Holding force at nominal operating pressure	610N
Product weight	247g	Type of mounting	Via vacuum connection
Vacuum connection	G3/8	Color	Transparent
Shore hardness	60 +/- 5	Material of screwed plug	Wrought aluminum alloy
Note on materials	RoHS-compliant	Suction cup material	VMQ (silicone)
Manufacturer ID	1387375

Specifications may be subject to change without notice
