Product Model

vas-8-m5-si-b

Manufacturer

Festo

Key Features

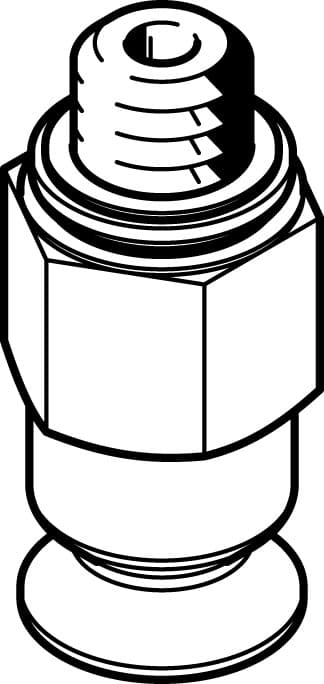

1The Festo VAS-8-M5-SI-B suction cup features a round flat suction shape with a diameter of 8 mm, ensuring a secure grip in various applications.
2This suction cup is made from high-quality VMQ (Silicone) material, which provides excellent durability and resistance to corrosion, making it suitable for harsh environments.
3With a nominal operating pressure of -0.7 bar and an operating pressure range of -0.95 to -0.7 bar, the VAS-8-M5-SI-B is designed to handle atmospheric air effectively, ensuring consistent performance.
4The suction cup has a holding force of 2.60 N at the nominal operating pressure, providing a reliable grip in various industrial settings.
5The Festo VAS-8-M5-SI-B suction cup is compatible with M5 vacuum connections, offering flexibility in installation and integration with other Festo components.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Suction cup height compensation	0.9mm	Nominal width	2mm
Suction cup diameter	8mm	Suction cup volume	0.095cm3
Connection position	Top	Mounting position	Any
Symbol	00991485	Suction cup shape	Round, flat
Operating pressure	-13.775psi 0psi	Nominal operating pressure	-10.15psi
Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III	For use in the food industry	See supplementary material information
Ambient temperature	-40°C 200°C	Holding force at nominal operating pressure	2.6N
Product weight	2g	Type of mounting	Via vacuum connection
Vacuum connection	M5	Color	Transparent
Shore hardness	60 +/- 5	Material of screwed plug	Wrought aluminum alloy
Note on materials	RoHS-compliant	Suction cup material	VMQ (silicone)
Manufacturer ID	1377781

Specifications may be subject to change without notice
