Product Model
vaf-db-1/2
Key Features

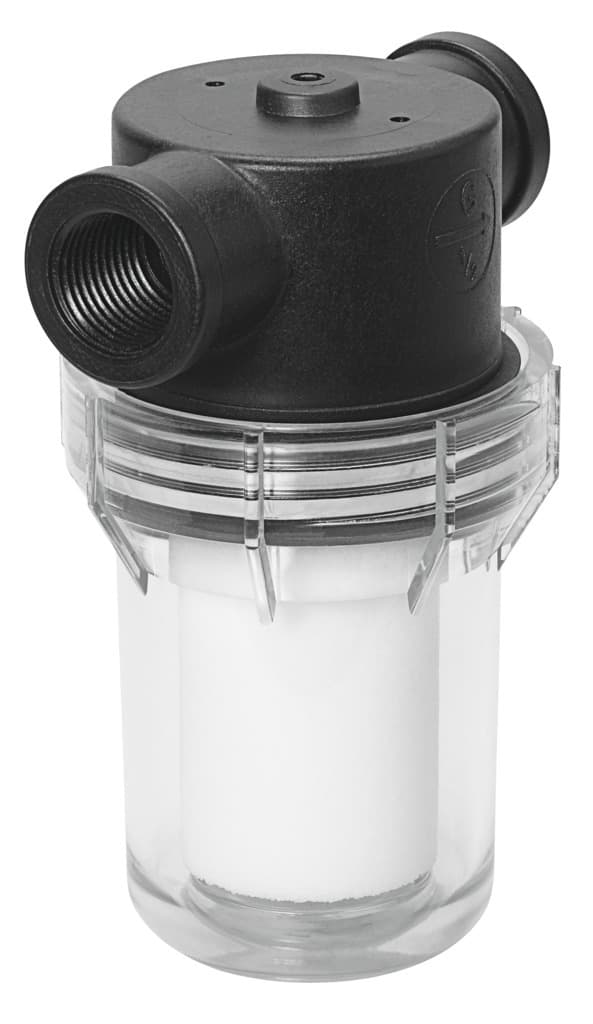

- 1The Festo VAF-DB-1/2 vacuum filter offers a high grade of filtration with a porosity of 80 µm, ensuring effective removal of dirt particles from compressed air.
- 2This filter can be mounted in a vertical position, making it suitable for various industrial applications where space is limited.
- 3The VAF-DB-1/2 operates within a pressure range of -0.95 to 0 bar, making it compatible with open vacuum systems.
- 4The filter is RoHS-compliant and contains LABS (PWIS) substances, ensuring it meets stringent safety and environmental standards.
- 5Made from high-quality materials like PE filter material, PP reinforced housing, and PA bowl, this filter is built to withstand demanding industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Vertical | Grade of filtration | 80μm |
| Symbol | 00991483 | Operating pressure | -0.95bar 0bar |
| Information on operating pressure | Only for use in open vacuum systems | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | Ambient temperature | -5°C 50°C |
| Max. tightening torque | 20.5Nm | Product weight | 162g |
| Type of mounting | Line installation With wall/surface bracket | Pneumatic connection | G1/2 |
| Vacuum connection | G1/2 | Note on materials | RoHS-compliant |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | PP-reinforced | Material of bowl | PA |
| Ejector pulse suitability | 7bar | Manufacturer ID | 553141 |
Specifications may be subject to change without notice
