Product Model

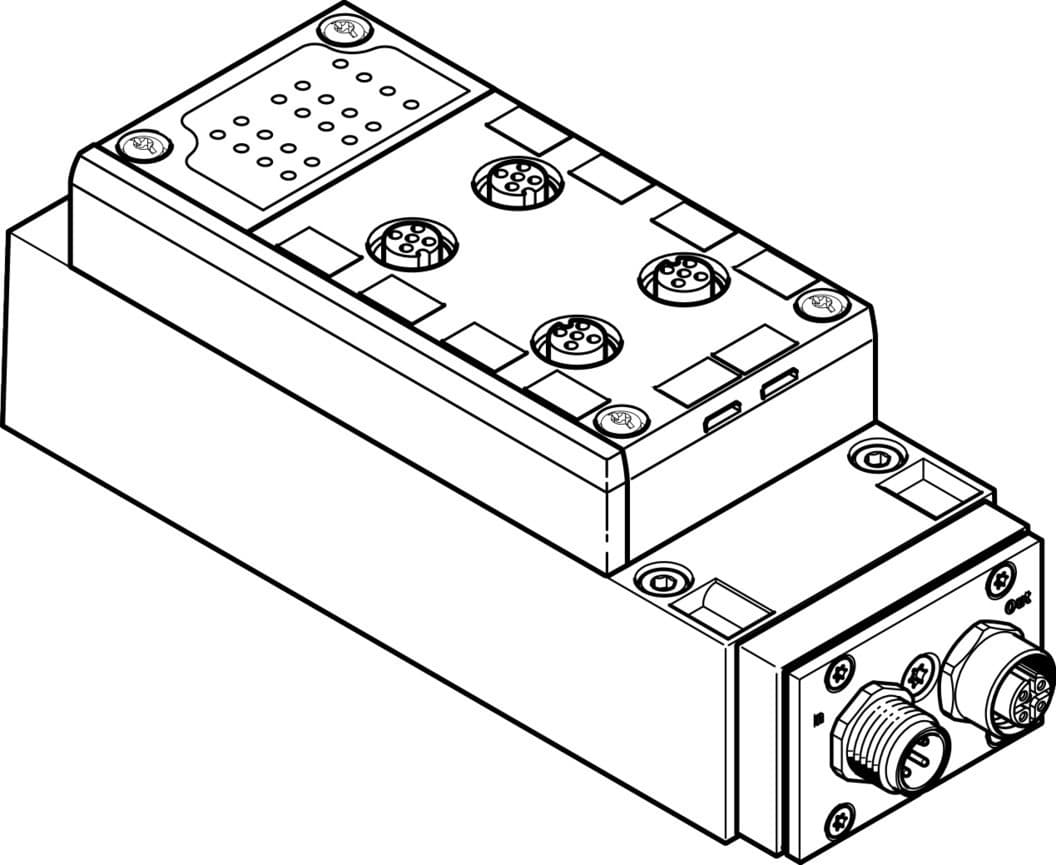

vaem-s6-s-fas-4-4e
Key Features
- 1The VAEM-S6-S-FAS-4-4E features a 4-pin field bus interface with M12x1 socket and plug connectors, ensuring seamless communication in industrial automation systems.
- 2Equipped with short circuit/overload, undervoltage, and peripherals error diagnostics, this module provides comprehensive monitoring and troubleshooting capabilities.
- 3The module can be mounted in any position, offering flexibility in system design and installation.
- 4Supports up to 4 valve positions with bistable or monostable valves, making it suitable for various industrial automation applications.
- 5Meets EU EMC Directive and EU Low Voltage Directive standards, ensuring reliable operation in harsh environments with IP65 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Fieldbus interface | Socket, M12x1, 4-pin Plug, M12x1, 4-pin | Device-specific diagnostics | Short circuit/overload of inputs Undervoltage Via peripheral error: |
| Mounting position | Any | Max. no. of valve positions | 2 for bistable pneumatic valves 4 for monostable pneumatic valves |
| Max. no. of solenoid coils | 4 | Reverse polarity protection | for all electrical operating voltage connections |
| Control elements | DIL switch | Number of slaves per device | 1 |
| AS-Interface DC operating voltage range | 26.5V 31.6V | Information concerning load voltage | Via load voltage connection (24 V DC) |
| Load voltage range DC | 21.6V 26.4V | Max. no. of outputs | 4 |
| Max. number of inputs | 4 | Nominal operating voltage DC AS-Interface | 26.5V |
| Nominal voltage DC | 24V | Nominal operating voltage DC | 24V |
| AS interface residual ripple | <= 20 mVss | Load voltage residual ripple | 4 Vss |
| Switching level | Signal 0: <= 5 V Signal 1: >= 11 V | Permissible voltage fluctuations | +/- 10 % |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Relative air humidity | 0 - 90 % | Degree of protection | IP65 In mounted state |
| Ambient temperature | -5°C 50°C | Product weight | 300g |
| Electrical actuation | Fieldbus | Input switching logic | PNP (positive switching) |
| Electrical connection | Via CPX | Addressing range | 1 ... 31 (0) Setting using AS-Interface addressing device |
| Galvanic isolation fieldbus interface | Optocoupler | LED display (bus-specific) | AS-i: AS-Interface mode Aux/Pwr: AS-Interface power supply Fault: AS interface fault |
| LED display (product-specific) | 0 ... 7: switching status of inputs 12/14: switching status of pneumatic valves (on pneumatic valve) | Product identification | ID1=Fh ID2=Eh IO code: 7h Profile: S-7.A.7 |
| Seals material | NBR PUR | Housing material | PA |
| Note on materials | RoHS-compliant | Manufacturer ID | 549044 |
Specifications may be subject to change without notice
