Product Model

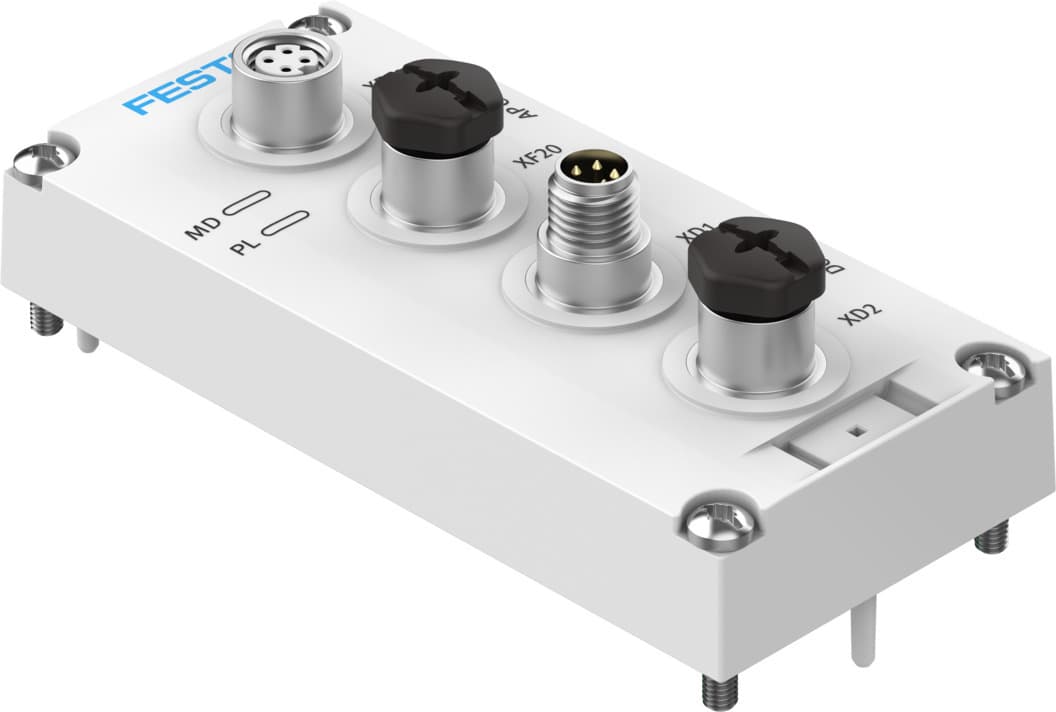

vaem-l1-s-12-ap
Key Features
- 1Advanced diagnostics via LED for module and load power supply.
- 2Robust protection against overvoltage and undervoltage conditions.
- 3High degree of protection with IP65 and IP67 ratings.
- 4Compact dimensions (42 x 91 x 30 mm) for easy integration.
- 5Compatible with 24V DC operating voltage and 10MS power failure bridging.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimensions W x L x H | 42 mm x 91 mm x 30 mm | Connection position | Top |
| Diagnostics via LED | Diagnostics per module Load power supply | Diagnose per internal communication | Load switch-off Electronics/sensors overvoltage Load overvoltage Electronics/sensors undervoltage Load undervoltage |
| Max. no. of valve positions | 12 | Max. no. of solenoid coils | 24 |
| Reverse polarity protection | yes | Module parameters | Configuration of voltage monitoring, load supply PL Response in error state |
| Fuse protection (short circuit) | Internal electronic fuse per channel | Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 34 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 16 mA | Nominal operating voltage DC for electronics/sensors | 24V |
| Nominal operating voltage DC load | 24V | Power failure buffering | 10ms |
| Power failure buffering of load | 3ms | Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Permissible voltage fluctuations load | ± 10% | Max. power supply | 2 x 4 A (external fuse required) |
| Power supply, function | Incoming electronics/sensors and load | Power supply, type of connection | Plug |
| Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 | Power supply, number of pins/wires | 4 |
| Voltage forwarding, function | Outgoing electronics/sensors and load | Voltage forwarding, connection type | Socket |
| Voltage forwarding, connection technology | M8x1, A-coded as per EN 61076-2-104 | Voltage forwarding, number of pins/wires | 4 |
| Communication interface, connection type | 2x socket | Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
| Communication interface, number of pins/wires | 4 | Communication interface, function | System communication XF10 IN / XF20 OUT |
| Communication interface, protocol | AP-COM | Communication interface, shielding | yes |
| CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| KC characters | KC EMC | Max. cable length | 50 m system communication |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Relative air humidity | 5 - 95 % Non-condensing |
| Protection against direct and indirect contact | PELV SELV | Note regarding operating voltage | SELV/PELV fixed power supplies required Note voltage drop |
| Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state Unused connections sealed |
| Ambient temperature | -5°C 60°C | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Nominal altitude of use above sea level | <= 2000 m NHN | Product weight | 76g |
| Type of mounting | Screwed tightly | Housing material | PA-reinforced |
| Threaded sleeve material | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Manufacturer ID | 8081922 |
Specifications may be subject to change without notice
