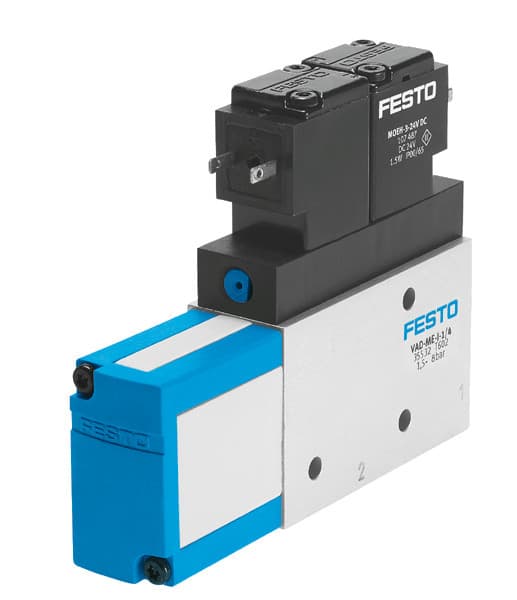

Product Model
vad-me-i-1/4
Key Features
- 1High Vacuum Performance: The Festo VAD-ME-I-1/4 vacuum generator is engineered to achieve high vacuum levels, making it ideal for demanding applications.
- 2Electric Ejector Pulse Valve: Equipped with an integrated electric ejector pulse valve, this device offers precise control and efficient operation.
- 3Optional Mounting Position: The vacuum generator can be mounted in various positions, providing flexibility in system design and installation.
- 4Laval Nozzle Size: The nominal size of the Laval nozzle is 1.4 mm, ensuring optimal performance in a compact design.
- 5Technical Precision: Built with precision engineering, the VAD-ME-I-1/4 ensures reliable operation and consistent performance in high-vacuum environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 1.4mm | Mounting position | Any |
| Ejector characteristics | High vacuum | Integrated function | Ejector pulse valve, electric Shut off valve, electric |
| Structural design | T-shape | Symbol | 00991493 |
| Operating pressure | 1.5bar 8bar | Max. vacuum | 90% |
| Duty cycle | 100% | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | LABS (PWIS) conformity | VDMA24364-B2-L |
| Temperature of medium | 0°C 50°C | Degree of protection | IP65 |
| Ambient temperature | 0°C 50°C | Electrical connection | Plug |
| Type of mounting | With internal thread | Pneumatic connection 1 | G1/8 |
| Vacuum connection | G1/4 | Housing material | Aluminum |
| Manufacturer ID | 35532 |
