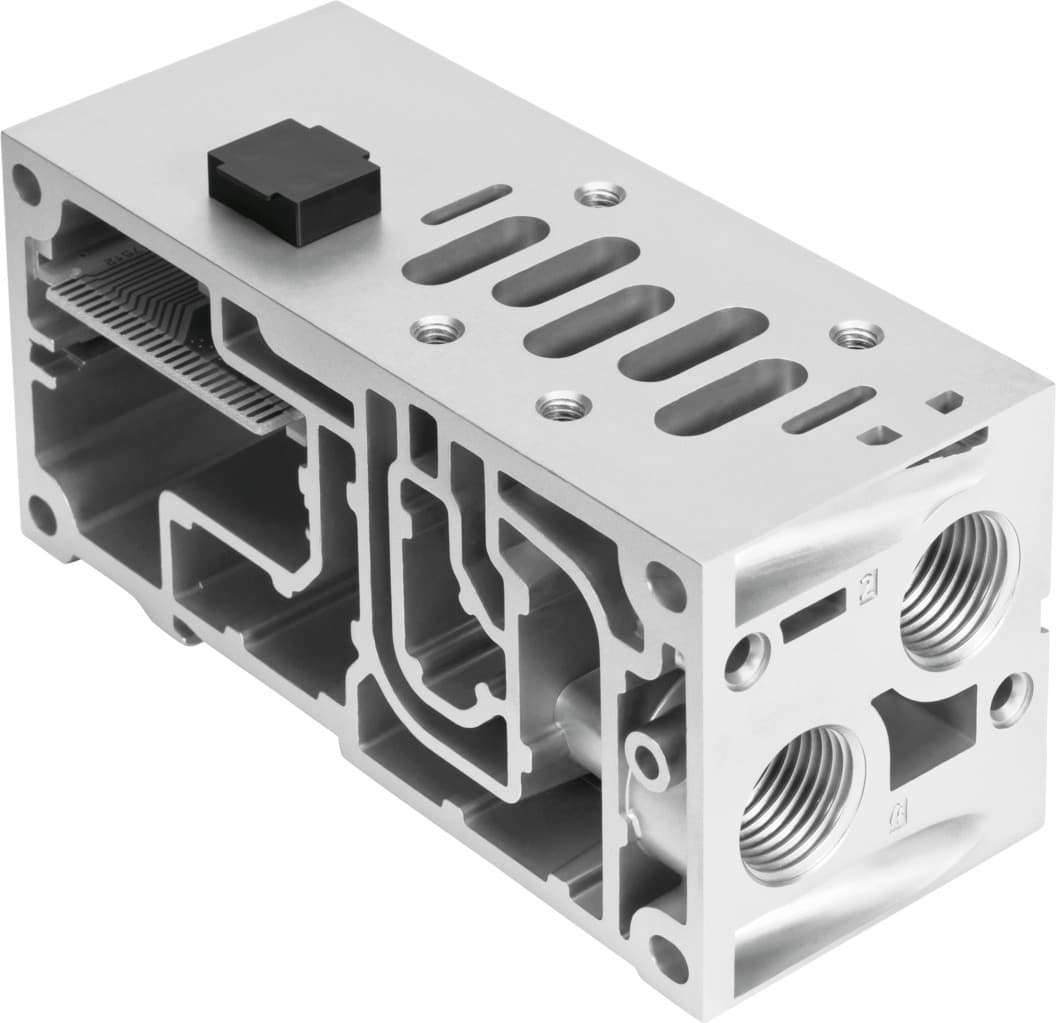

Product Model
vabv-s2-2s-g12-t2
Key Features
- 159 mm grid dimension for efficient space utilization.
- 2Operating pressure range of -0.9 to 10 bar.
- 3Compliant with EU Low Voltage Directive and UK regulations for electrical equipment.
- 4No corrosion stress with a corrosion resistance class of CRC 0.
- 5Made from die-cast aluminum, conforming to RoHS standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 59mm | Valve terminal type | 44 |
| Operating pressure | -0.9bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 610g |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 4 | G1/2 |
| Note on materials | RoHS-compliant | Plate material | Die-cast aluminum |
| Manufacturer ID | 560841 |
Specifications may be subject to change without notice
