Product Model

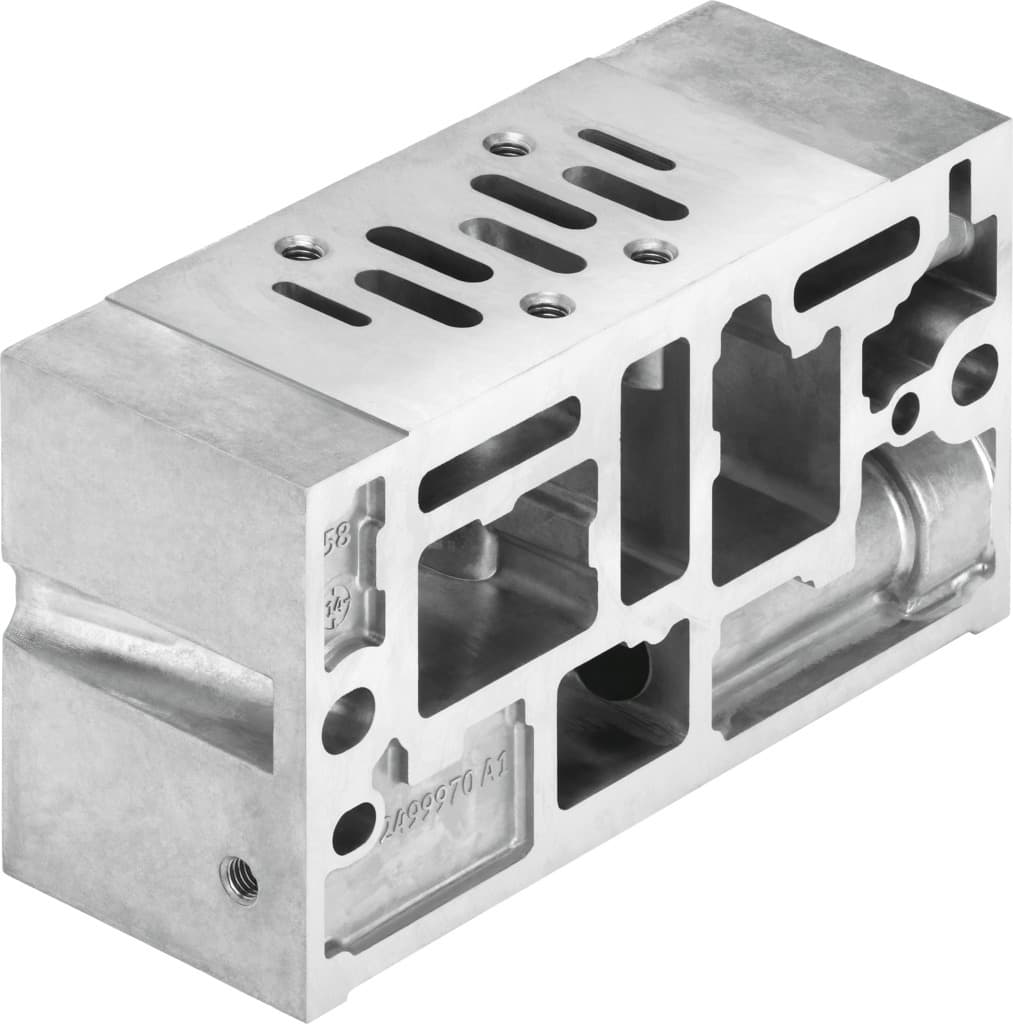

vabv-s1-1sb-n38
Key Features
- 1Compliant with ISO 5599-1: Ensures high-quality performance in pneumatic systems.
- 2Die-Cast Aluminum Construction: Durable and resistant to corrosion.
- 33/8 NPT Connections: Easy integration with various pneumatic components.
- 4Suitable for Vacuum Operations: Versatile for both compressed air and vacuum applications.
- 5CE Marked and RoHS Compliant: Meets EU safety standards and environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 44mm | Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 | Max. no. of valve positions | 1 |
| Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 50°C | Product weight | 490g |
| Pneumatic connection 2 | 3/8 NPT | Pneumatic connection 4 | 3/8 NPT |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Manufacturer ID | 8029813 |
Specifications may be subject to change without notice
