Product Model

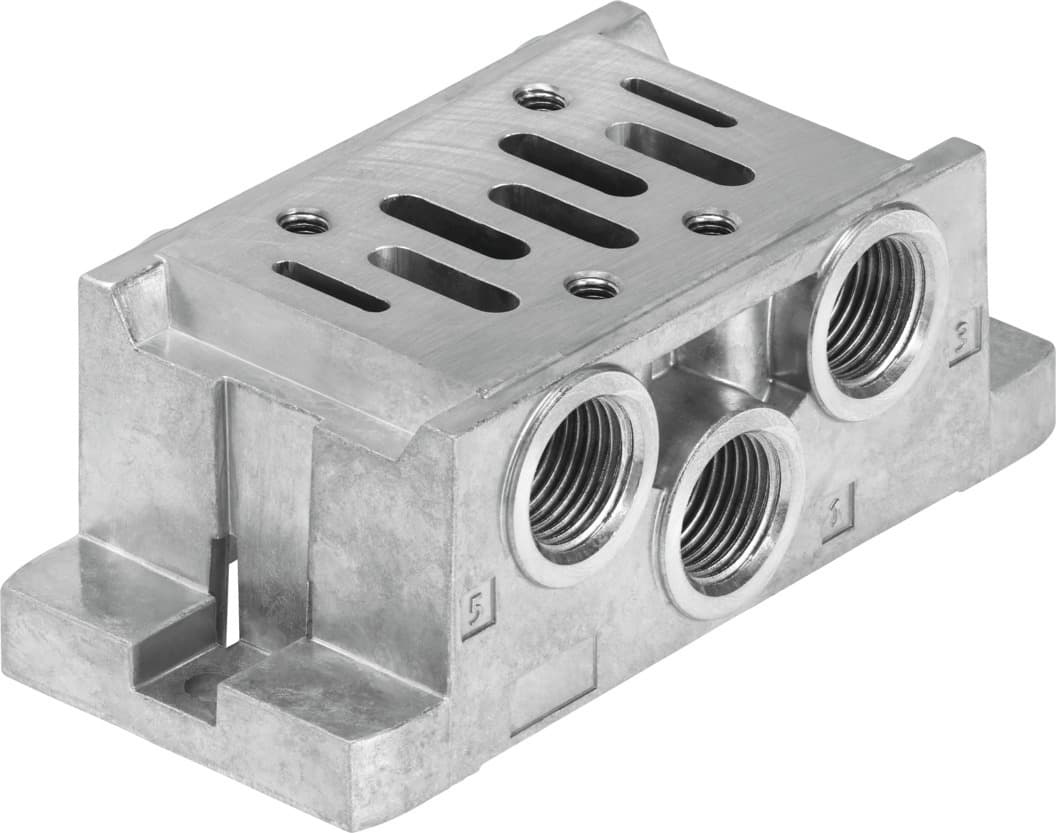

vabs-s1-1s-n38
Key Features
- 1Electrical actuation for precise control.
- 2Soft sealing principle for reliable operation.
- 3Versatile mounting position for any setup.
- 4Compatible with compressed air (ISO 8573-1:2010).
- 5Robust construction with die-cast aluminum sub-base.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48mm | Based on norm | ISO 5599-1 |
| Actuation type | Electrical | Sealing principle | Soft |
| Mounting position | Any | Operating pressure | 0bar 16bar |
| Pilot pressure MPa | 0MPa 1MPa | Pilot pressure | 0bar 10bar |
| Suitability for vacuum | yes | CE marking (see declaration of conformity) | As per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Temperature of medium | -10°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Product weight | 230g | Type of mounting | with through-hole for M5 screw |
| Pilot air port 12/14 | 1/8 NPT | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 2 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
| Pneumatic connection 4 | 3/8 NPT | Pneumatic connection 5 | 3/8 NPT |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Manufacturer ID | 8032643 |
Specifications may be subject to change without notice
