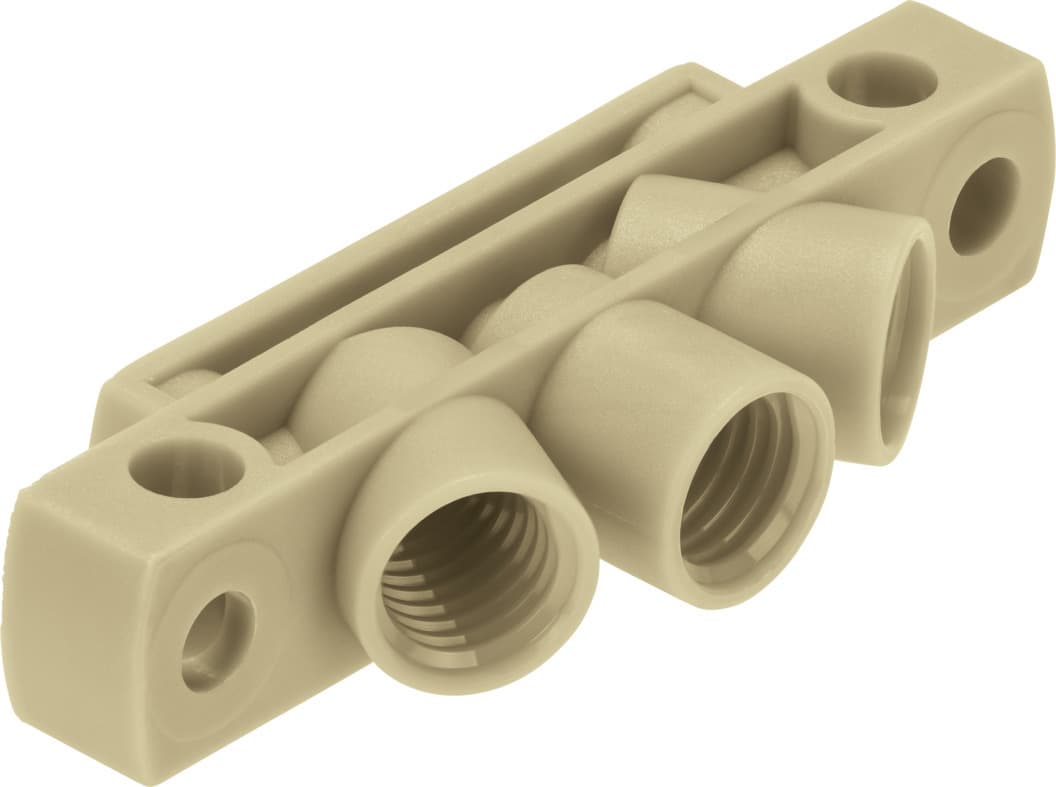

Product Model
vabs-k1-7b-12-u14-p
Key Features
- 11.2mm nominal size for precise fluid management.
- 27mm valve size for efficient flow control.
- 3Female thread 1/4-28 UNF-2B fluid connection for secure sealing.
- 4Optional mounting position for versatile installation.
- 5Reversible flow direction for flexible operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 1.2mm | Valve size | 7mm |
| Fluid connector | Internal thread 1/4-28 UNF-2B | Mounting position | Any |
| Structural design | Connection direction downwards | Flow direction | Reversible |
| Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.15Nm | Max. tightening torque of pneumatic fitting | 0.6Nm |
| Product weight | 3g | Sub-base mounting type | With through-hole |
| Pneumatic valve mounting type | With internal thread | Note on materials | RoHS-compliant |
| Material of sub-base | PEEK | Threaded sleeve material | High-alloy stainless steel |
| Manufacturer ID | 8047063 |
Specifications may be subject to change without notice
