Product Model

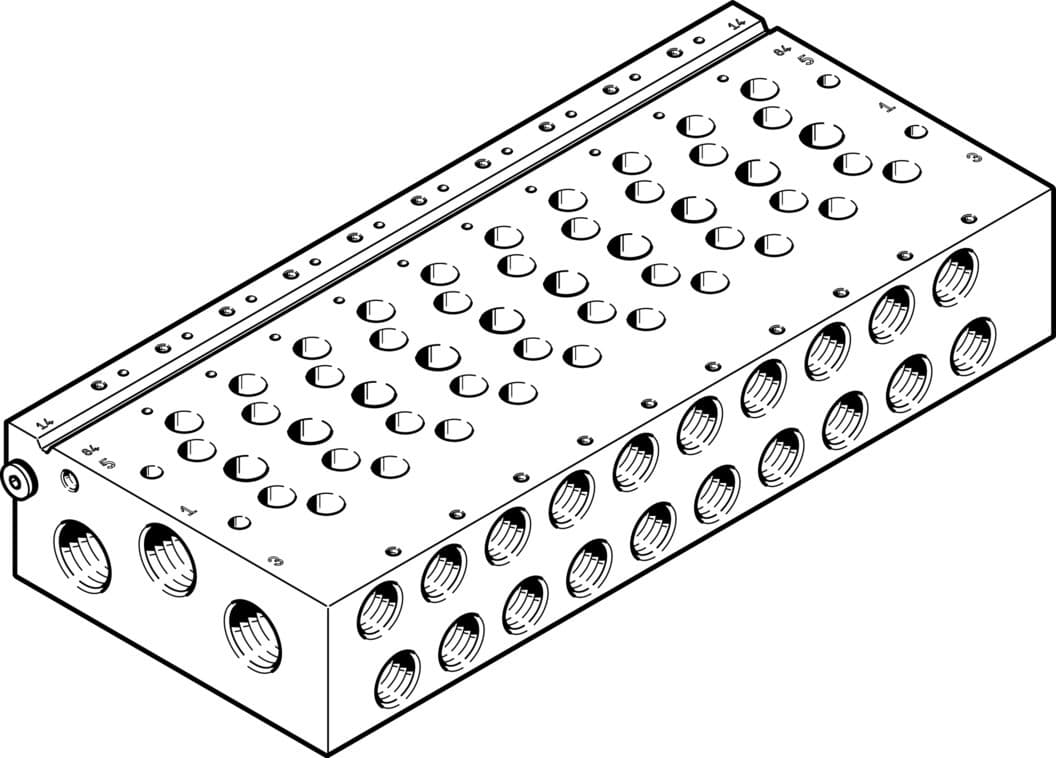

vabm-l1-18w-g38-9
Key Features
- 1The VABM-L1-18W-G38-9 manifold rail ensures precise and reliable pneumatic connections with its robust design.
- 2Offers a compact and efficient grid dimension for easy installation and integration into various systems.
- 3Supports up to 16 valve positions, making it versatile for a wide range of applications.
- 4Meets RCM compliance standards, ensuring safety and reliability in industrial settings.
- 5Features a moderate corrosion resistance class (CRC 2), providing durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 19mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 1.18Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 1391g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 574474 |
Specifications may be subject to change without notice
