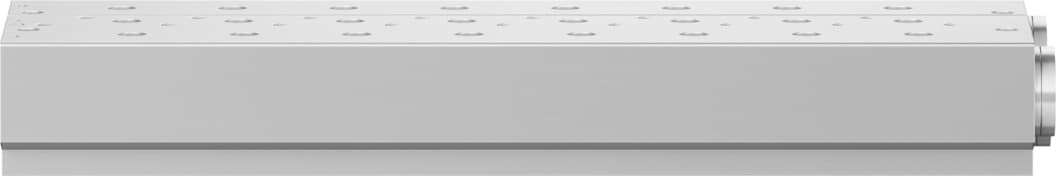

Product Model
vabm-b10-25s-g38-8
Key Features
- 1Compact design with 27.5mm grid dimension.
- 2Optional mounting position for flexible installation.
- 38 maximum valve positions for versatile applications.
- 4Moderate corrosion resistance class CRC 2.
- 5RoHS-compliant and made from wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1284g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026267 |
Specifications may be subject to change without notice
