Product Model

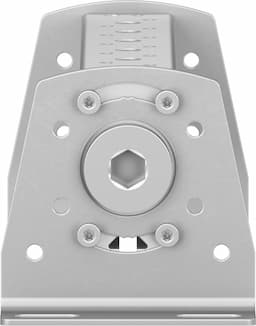

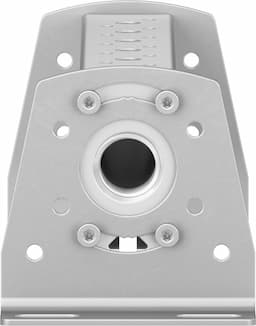

vabm-b10-25-g12-6-p53
Key Features
- 127.5MM grid dimension for precise pneumatic control.
- 2Optional mounting position for versatile installation.
- 36 max number of valve positions for efficient system management.
- 4Moderate corrosion resistance class CRC 2 for reliable performance.
- 5Wrought aluminum alloy material for durability and RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 586g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | G1/2 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026223 |
Specifications may be subject to change without notice
