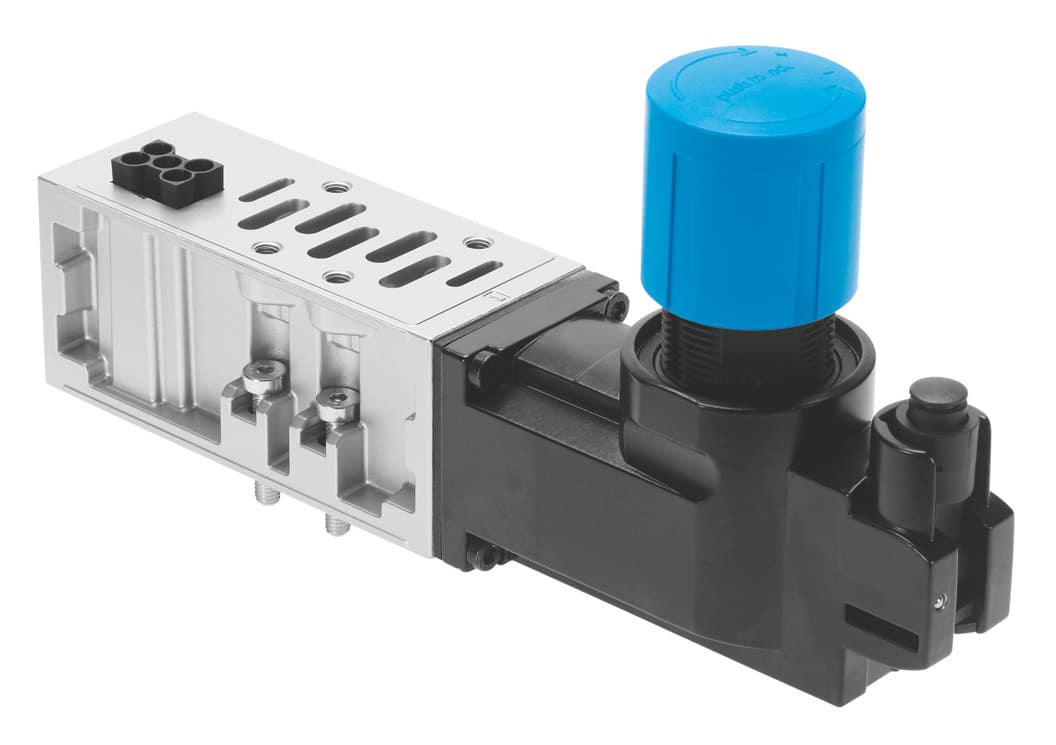

Product Model
vabf-s2-1-r1c2-c-10
Key Features
- 1Precision Pressure Regulation: Regulates pressure from 0.05 MPa to 1 MPa, ensuring consistent performance.
- 2Robust Construction: Built with die-cast aluminum housing and a corrosion resistance class of CRC 0, ensuring durability.
- 3Versatile Mounting Options: Can be mounted on manifold sub-base or individual sub-base for flexible installation.
- 4Secondary Venting Capability: Features secondary venting for enhanced safety and control.
- 5Compliant with Industry Standards: Meets ISO 5599-2 and ISO 8573-1:2010 standards for compressed air quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 42mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 1 |
| Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00992227 |
| Optional pressure gauge | Possible | Pressure regulation range MPa | 0.05MPa 1MPa |
| Pressure regulation range | 0.5bar 10bar | Pressure regulation range psi | 7.25psi 145psi |
| Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
| Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 640g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
| Note on materials | RoHS-compliant | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 546084 |
Specifications may be subject to change without notice
