Product Model

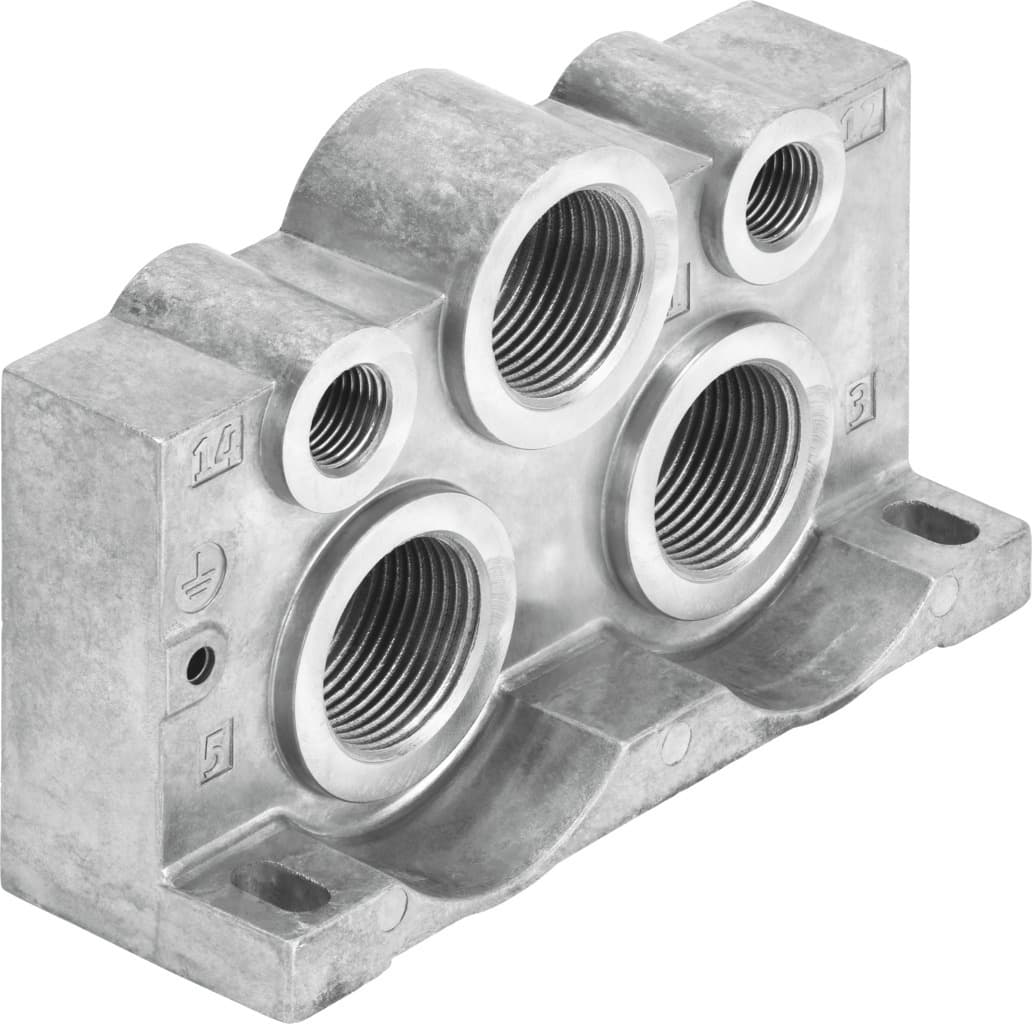

vabe-s1-2lz-g34
Key Features
- 1Made from die-cast aluminum, ensuring durability and resistance to corrosion.
- 2Compatible with through-hole for M6 screw, providing flexible mounting options.
- 3Suitable for vacuum applications and operates with compressed air as per ISO 8573-1:2010 [7:4:4].
- 4Operating pressure from 0 to 10 bar, and ambient temperature from -10°C to 50°C.
- 5CE marked and RoHS-compliant, meeting EU low voltage directive and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 44mm | Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 | Operating pressure | 0bar 10bar |
| Suitability for vacuum | yes | CE marking (see declaration of conformity) | As per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Temperature of medium | -10°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 50°C |
| Product weight | 360g | Type of mounting | with through-hole for M6 screw |
| Pilot air port 12/14 | G? | Pneumatic connection 1 | G3/4 |
| Pneumatic connection 3 | G3/4 | Pneumatic connection 5 | G3/4 |
| Note on materials | RoHS-compliant | End plate material | Die-cast aluminum |
| Manufacturer ID | 8032664 |
Specifications may be subject to change without notice
