Product Model

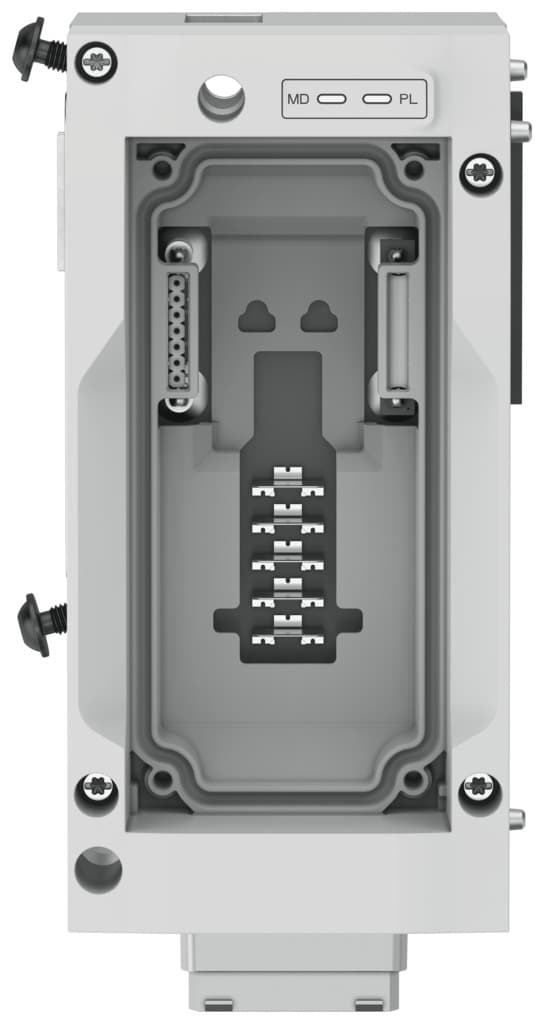

vaba-s6-1-x5-f4
Key Features
- 1The VABA-S6-1-X5-F4 pneumatic interface connects automation systems CPX-AP-A with valve terminals VTSA-FB or VTSA-F-FB, ensuring efficient and reliable control of pneumatic actuators.
- 2This interface features advanced diagnostics, including short-circuit/overload detection, undervoltage/overvoltage logic supply monitoring, and load supply voltage monitoring, ensuring optimal system performance.
- 3With a robust design, the VABA-S6-1-X5-F4 offers vibration resistance and shock resistance according to EN 60068 standards, making it suitable for various industrial applications.
- 4The module supports up to 16 bistable or 32 monostable valve positions and 32 solenoid coils, providing flexibility in valve configuration and operation.
- 5The product is designed with safety in mind, featuring short-circuit protection and electronic response after overload, ensuring safe operation and minimizing downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Note on vibration resistance | SG2 on wall mounting |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Note on shock resistance | SG2 on wall mounting |
| Valve manifold interface | Type 44, VTSA Type 45, VTSA-F | Reverse polarity protection | yes |
| Diagnostics via LED | Diagnostics per module Load power supply | Diagnose per internal communication | Load switch-off Communication error Short-circuit/overload in output signal Electronics/sensors overvoltage Load overvoltage Electronics/sensors undervoltage Load undervoltage |
| Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves | Max. no. of solenoid coils | 32 |
| Module code (hex/dec) | 0x3045/12357d | Module parameters | Activation of diagnosis in case of overload/short circuit Condition counter limit/actual value Configuration of voltage monitoring, load supply PL Response in error state |
| Internal cycle time | < 1 ms | Dimensions W x L x H | 70.5 mm x 160.65 mm x 102.6 mm |
| Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output | Intrinsic current consumption at nominal operating voltage for electronics/sensors | typically 27 mA |
| Intrinsic current consumption at nominal operating voltage load | typically 17 mA | Note regarding operating voltage | SELV/PELV fixed power supplies required Note voltage drop |
| Max. power supply | 2 x 16 A (external fuse required) | Nominal operating voltage DC for electronics/sensors | 24V |
| Nominal operating voltage DC load | 24V | Nominal current | 16A |
| Power failure buffering | 10ms | Potential separation between the supply voltages electronics/sensor technology and load/valves | yes |
| Contamination level | 2 | Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Permissible voltage fluctuations load | ± 10% | Power supply, function | Incoming electronics/sensors and load and functional earth |
| Power supply, type of connection | Plug | Power supply, connection technology | Push-pull as per IEC 61076-3-126 |
| Power supply, number of pins/wires | 5 | Power supply, connection pattern | 00997378 |
| Voltage forwarding, function | Outgoing electronics/sensors and load and functional earth | Voltage forwarding, connection type | Socket |
| Voltage forwarding, connection technology | Push-pull as per IEC 61076-3-126 | Voltage forwarding, number of pins/wires | 5 |
| Voltage forwarding, connection pattern | 00997378 | Undervoltage load/valves (diagnostic message) | 21.6V |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20°C 70°C | Relative air humidity | 5 - 95 % Non-condensing |
| Protection class | III | Overvoltage category | II |
| Ambient temperature | -20°C 50°C | Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Nominal altitude of use above sea level | <= 2000 m ASL (> 79.5 kPa) | Max. installation height | 3500m |
| Information on max. installation height | > 2000 m ASL (< 79.5 kPa) Observe ambient temperature derating according to IEC 61131-2:2017 | Product weight | 1328g |
| Electrical actuation | Fieldbus | Communication interface, protocol | AP |
| Type of mounting | with through-hole for M6 screw | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
| Cover material | Zinc die-cast metal, powder-coated | Seals material | NBR PUR |
| Material of flange | Die-cast zinc, nickel-plated | Housing material | Aluminum |
| Material of screws | Steel, nickel-plated | Manufacturer ID | 8154039 |
Specifications may be subject to change without notice
