Product Model

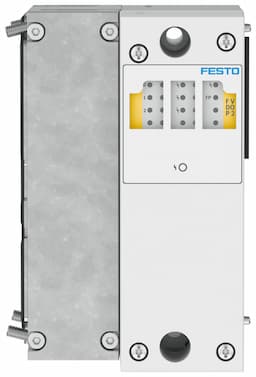

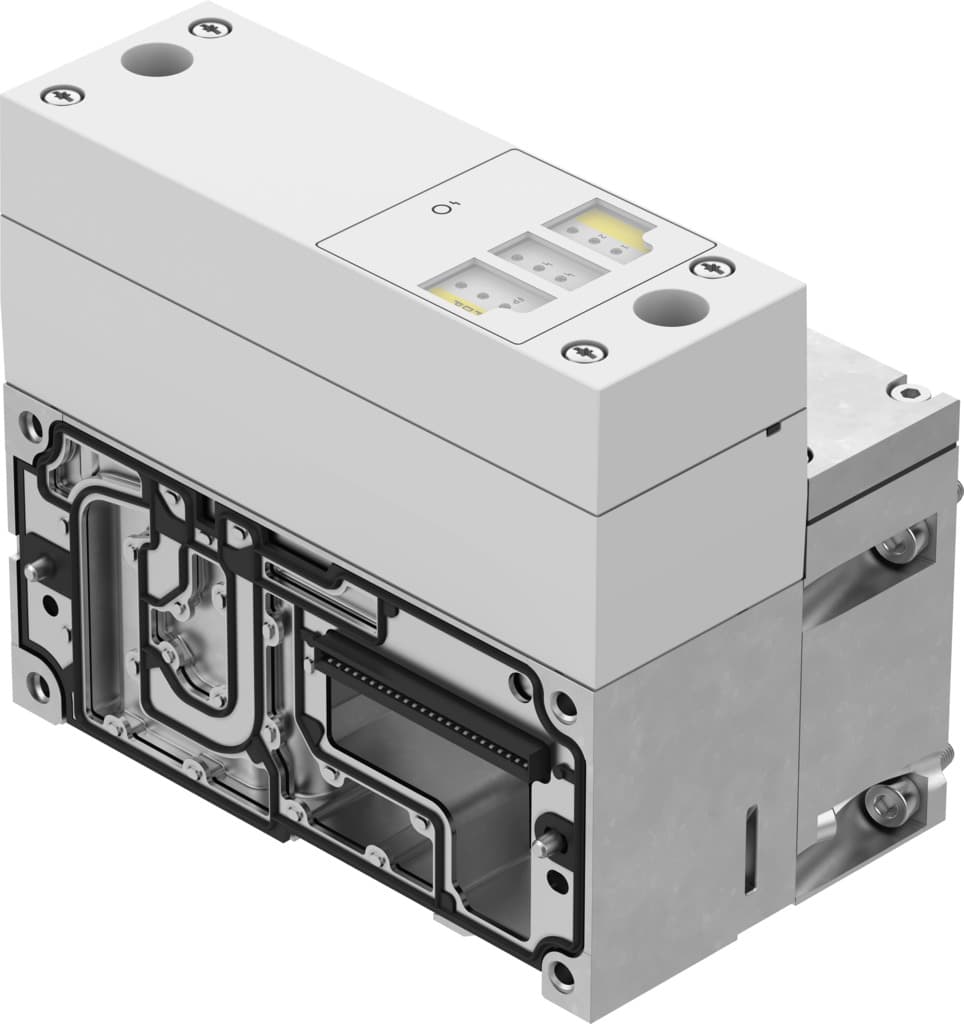

vaba-s6-1-x2-f1-cb-al
Key Features
- 1The VABA-S6-1-X2-F1-CB-AL is designed to withstand severe vibration and shock tests, ensuring reliable performance in demanding industrial environments.
- 2Equipped with comprehensive diagnostics, including wire break detection, short circuit protection, and undervoltage monitoring, this interface provides real-time feedback for optimal system operation.
- 3With the ability to control up to 24 monostable or 12 bistable valves, this interface offers flexible and efficient valve management for various industrial applications.
- 4Featuring internal bus isolation when using an additional power supply for the valves, this interface ensures safe and reliable electrical connections.
- 5Meets EU EMC and RoHS directives, as well as UK instructions for EMC and RoHS, ensuring compliance with stringent safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Valve manifold interface | Type 44, VTSA-F-CB | Diagnostics | Wire break per valve coil Short circuit of pneumatic valves Undervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves 24 for monostable pneumatic valves | LED indicators | 1 group diagnostics |
| Parameterization | Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring | Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6V 26.4V | Intrinsic current consumption at nominal operating voltage | Typ. 15 mA for valves without CPX-FVDA-P2 Typ. 25 mA for electronics with CPX-FVDA-P2 |
| Max. power supply per channel | 0.2?A | Max. residual current per module | 2A |
| Nominal operating voltage DC | 24V | Electrical isolation between channel and internal bus | Yes, when using an additional supply for the pneumatic valves |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Degree of protection | IP65 |
| Ambient temperature | -5°C 50°C | Product weight | 1542g |
| Electrical actuation | Fieldbus | Electrical connection | Via CPX |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Cover material | PA | Seals material | NBR |
| Material of screws | Steel | Manufacturer ID | 8152437 |
Specifications may be subject to change without notice
