Product Model

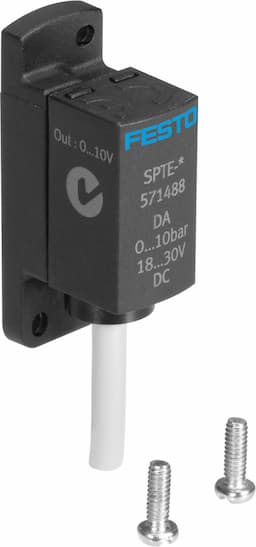

spte-v1r-f-v-2.5k
Key Features
- 1High accuracy with ±3% FS and ±0.3% FS repetition accuracy.
- 2Durable PA-reinforced housing for long-lasting performance.
- 3Compatible with compressed air according to ISO 8573-1:2010.
- 4Analog output range of 0 - 10 V for easy integration.
- 5Operating voltage range of 18 - 30 V DC with reverse polarity protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00992257 | Certification | RCM compliance mark c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E322346 | Note on materials | RoHS-compliant |
| Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | 0psi | Pressure measuring range end value | -14.5psi |
| Overload pressure | 72.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
| Ambient temperature | 0°C 50°C | Accuracy in ± % FS | 3%FS |
| Repetition accuracy in ± %FS | 0.3%FS | Temperature co-efficient in ± %FS/K | 0.05%FS/K |
| Analog output | 0 - 10 V | Rise time | 1ms |
| Min. load resistance of voltage output | 15kOhm | Short-circuit protection | For all electrical connections |
| DC operating voltage range | 18V 30V | Reverse polarity protection | for all electrical connections |
| Electrical connection | 3-wire Cable Open end | Cable length | 2.5m |
| Type of mounting | With through-hole and screw | Mounting position | Any |
| Pneumatic connection | Flange | Product weight | 35g |
| Housing material | PA-reinforced | Sealing ring material | FPM |
| Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Manufacturer ID | 571478 |
Specifications may be subject to change without notice
