Product Model
sncl-12
Key Features

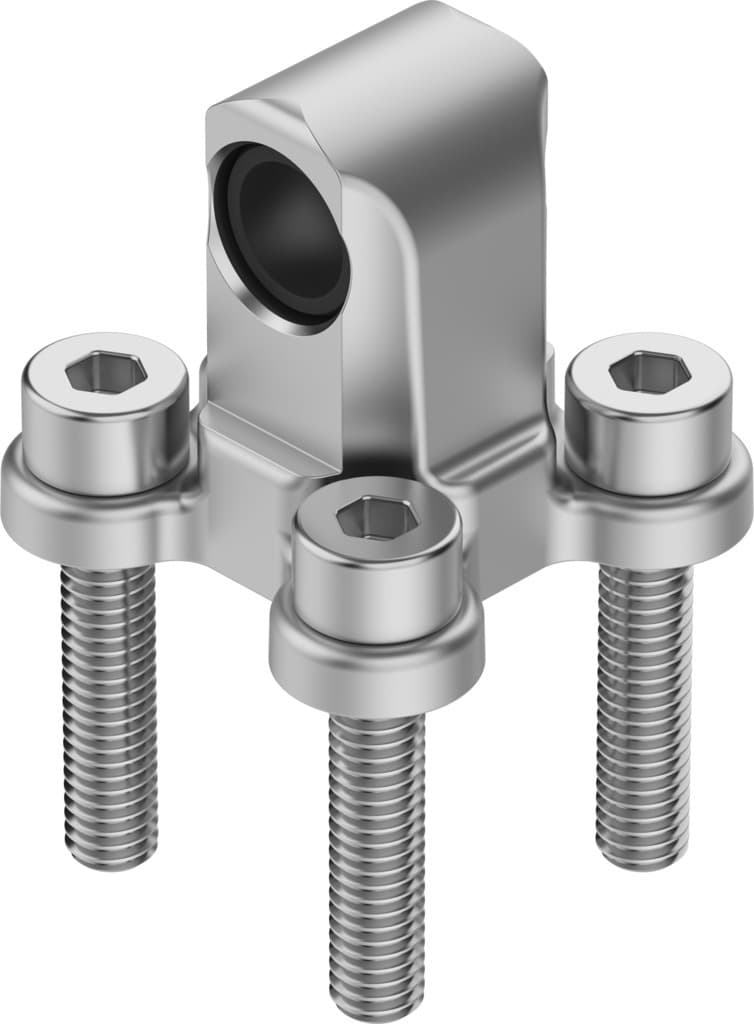

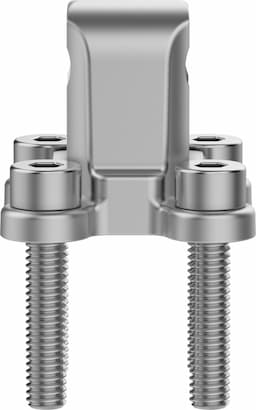

- 1The Festo SNCL-12 swivel flange is designed to fit 12mm bore sizes, ensuring a precise and secure fit in various pneumatic systems.
- 2With a corrosion resistance classification of CRC=2, this swivel flange offers moderate corrosion stress protection, making it suitable for a wide range of industrial environments.
- 3The SNCL-12 operates within an ambient temperature range of -40°C to 90°C, providing flexibility in diverse application settings.
- 4Constructed from high-quality materials, including wrought aluminum alloy and plastic, this swivel flange is both durable and resistant to wear.
- 5The Festo SNCL-12 swivel flange is ISO 21287 compliant, ensuring it meets international standards for pneumatic components, enhancing reliability and compatibility in your systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Based on norm | ISO 21287 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 90°C | Product weight | 20g |
| Note on materials | RoHS-compliant | Mounting material | Wrought aluminum alloy |
| Material of bearing | Polymer | Material of screws | Steel Galvanized |
| Manufacturer ID | 537790 |
Specifications may be subject to change without notice
