Product Model

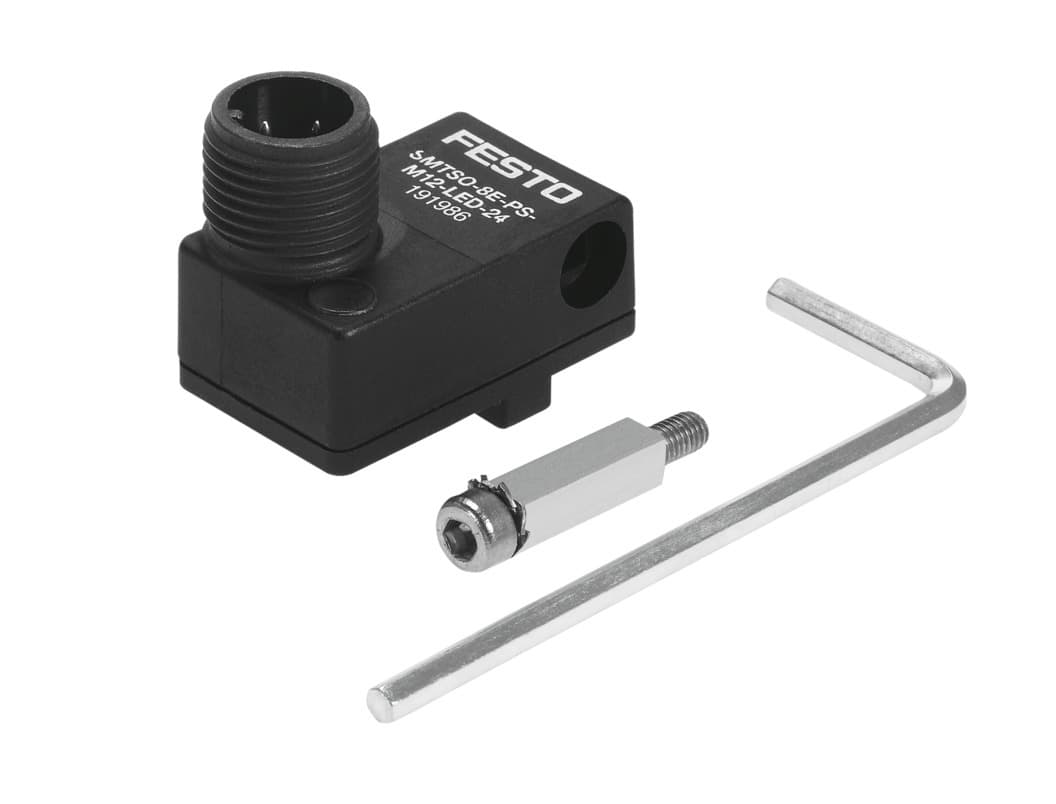

smtso-8e-ns-m12-led-24
Key Features
- 1The Festo SMTSO-8E-NS-M12-LED-24 proximity sensor boasts a mean time to failure (MTTF) of 8719 years, ensuring high reliability in industrial applications.
- 2With a maximum switching frequency of 14 Hz, this sensor provides precise and reliable operation in various industrial settings.
- 3The sensor is CE marked and compliant with the EU EMC and RoHS Directives, ensuring it meets stringent safety and environmental standards.
- 4The SMTSO-8E-NS-M12-LED-24 features a welding-field-resistant design, making it suitable for applications in harsh environments.
- 5The sensor's 24V DC rated operating voltage and yellow LED switching status indication make it easy to integrate into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Based on norm | EN 60947-5-2 |
| Symbol | 00991150 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Special features | Welding field resistant Resistant to welding spatter | Note on materials | RoHS-compliant |
| Application note | Support / actuator-sensor overview "The right sensor for the actuator" | Measured variable | Position |
| Measuring principle | Magneto-inductive | Ambient temperature | -25°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | NPN |
| Switching characteristics during the welding process | Output signal freezes | Switching element function | N/O contact |
| On time | 38ms | Switch-off time | 20ms |
| Max. switching frequency | 14Hz | Max. output current | 200mA |
| Max. switching capacity DC | 6W | Voltage drop | 3V |
| Residual current | 0.01mA | Short-circuit protection | Pulsed |
| Overload protection | Available | DC operating voltage range | 10V 30V |
| Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00995573 | Connection outlet orientation | Transverse |
| Material of pin contacts | Brass, gold-plated | Type of mounting | Clamped in T slot With accessories Can be inserted in slot from above |
| Mounting position | Any | Product weight | 10g |
| Housing colour | Black | Housing material | Wrought aluminum alloy PA PUR High-alloy stainless steel |
| Switching status indication | LED yellow | Degree of protection | IP65 IP67 |
| Resistance to interference from magnetic fields | 45 - 65 Hz Alternating magnetic field | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 175825 |
Specifications may be subject to change without notice
