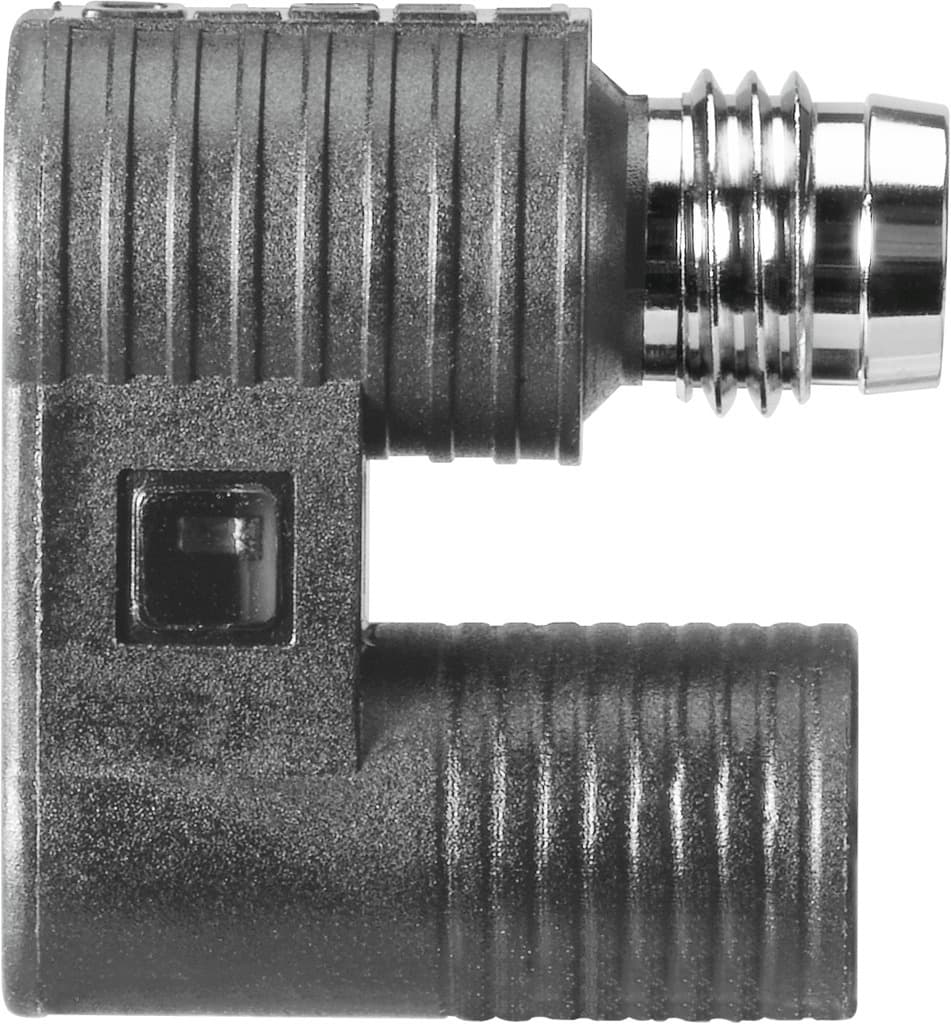

smto-4u-ps-s-led-24
Key Features
- 1The SMTO-4U-PS-S-LED-24 offers a high level of accuracy with a reproducibility of switching value of ±0.1 mm, ensuring reliable performance in industrial settings.
- 2This proximity sensor is designed with IP67 protection, making it suitable for harsh environments and ensuring it remains functional even in challenging conditions.
- 3Utilizing a magneto-inductive measuring principle, the SMTO-4U-PS-S-LED-24 provides precise detection and measurement capabilities, ideal for various industrial automation applications.
- 4The sensor features an LED yellow indication for easy switching status monitoring, enhancing user convenience and operational efficiency.
- 5With an operating temperature range of -25 °C to 70 °C, the SMTO-4U-PS-S-LED-24 can be used in a variety of industrial environments, ensuring consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Round | Based on norm | EN 60947-5-2 |
| Symbol | 00991153 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Position |
| Measuring principle | Magneto-inductive | Ambient temperature | -25°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | PNP |
| Switching element function | N/O contact | On time | 0.5ms |
| Switch-off time | 0.5ms | Max. output current | 200mA |
| Max. switching capacity DC | 6W | Voltage drop | 2V |
| Inductive protective circuit | Installed | Minimum load current | 0.1mA |
| Residual current | 0.01mA | Short-circuit protection | Pulsed |
| Overload protection | Available | DC operating voltage range | 10V 30V |
| Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Longitudinal |
| Material of pin contacts | Brass, gold-plated | Type of mounting | With accessories |
| Max. tightening torque | 0.8Nm | Mounting position | Any |
| Product weight | 6g | Housing colour | Black |
| Housing material | PA PET PUR | Switching status indication | LED yellow |
| Degree of protection | IP67 | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 152742 |
