Product Model
smto-1-ns-s-led-24-c
Key Features

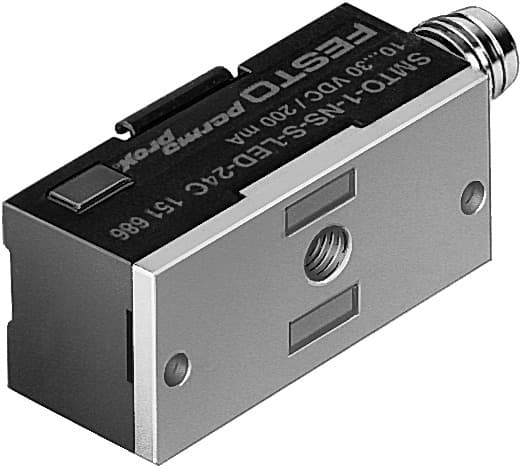

- 1The SMTO-1-NS-S-LED-24-C proximity sensor from Festo features a magneto-inductive measuring principle, ensuring high accuracy and reliability in industrial automation applications.
- 2With an operating temperature range of -25 °C to 70 °C, this sensor is designed to withstand various environmental conditions, making it suitable for diverse industrial settings.
- 3The sensor boasts a repetition accuracy of 0.2 mm and a switching output of NPN, providing precise and reliable switching performance.
- 4The SMTO-1-NS-S-LED-24-C is certified to EU EMC and RoHS directives, ensuring compliance with safety and environmental standards.
- 5This proximity sensor features an IP67 rating, protecting it from dust and water ingress, making it suitable for harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Based on norm | EN 60947-5-2 |
| Symbol | 00991150 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Position |
| Measuring principle | Magneto-inductive | Ambient temperature | -25°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | NPN |
| Switching element function | N/O contact | Hysteresis | 0.1mm 1.5mm |
| On time | 1ms | Switch-off time | 1ms |
| Max. switching frequency | 1000Hz | Max. output current | 200mA |
| Max. switching capacity DC | 6W | Voltage drop | 3V |
| Inductive protective circuit | Adapted to MZ, MY and ME coils | Residual current | 0.01mA |
| Short-circuit protection | Pulsed | Overload protection | Available |
| DC operating voltage range | 10V 30V | Residual ripple | 10 % |
| Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Longitudinal |
| Material of pin contacts | Brass, gold-plated | Type of mounting | With accessories |
| Mounting position | Any | Product weight | 20g |
| Housing colour | Black | Housing material | PC PET POM PUR Steel Die-cast zinc |
| Switching status indication | LED yellow | Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 151686 |
