Product Model
smt-8m-a-no-24v-e-2,5-oe
Key Features

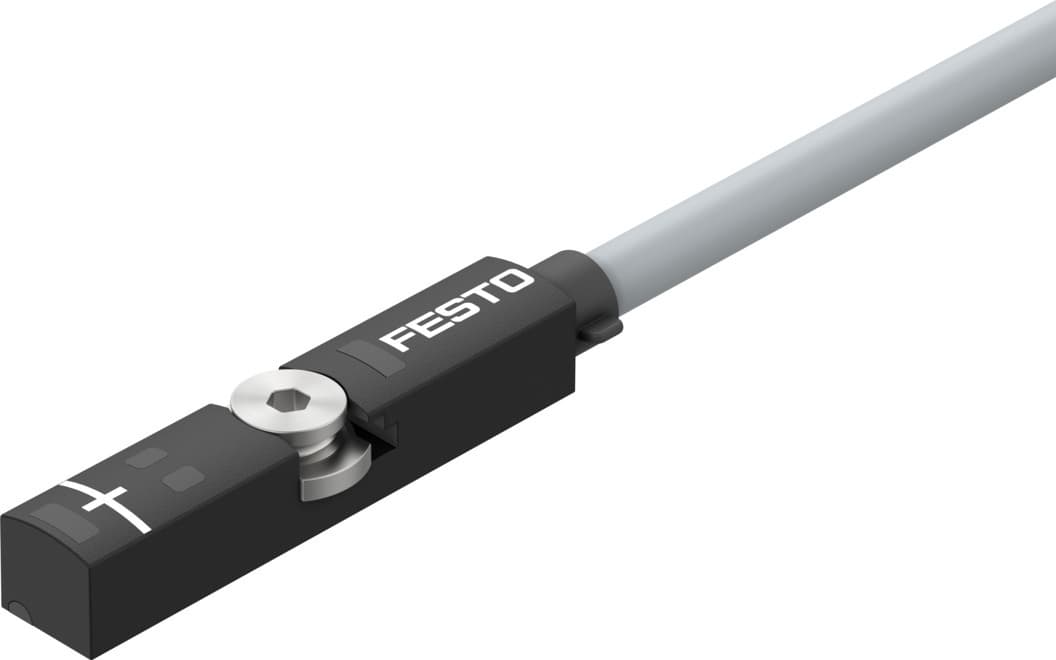

- 1The Festo SMT-8M-A-NO-24V-E-2,5-OE proximity sensor offers ±0.2 mm repetition accuracy, ensuring precise detection in various industrial settings.
- 2Designed for T-slot applications, this sensor provides a sturdy central mounting that resists vibration, shock, and tensile forces, ensuring reliable functioning.
- 3The sensor operates within a broad temperature range of -40°C to +85°C and supports a voltage range of 5 to 30 VDC, making it suitable for diverse industrial environments.
- 4With IP65, IP68, and IP69K ratings, the Festo SMT-8M-A-NO-24V-E-2,5-OE is designed to withstand harsh conditions, including dust and water exposure.
- 5The sensor features a specially shaped strain relief at the cable outlet that holds the switch automatically when pressed in, ensuring easy and secure installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for T-slot | Based on norm | EN 60947-5-2 |
| Symbol | 00997287 | Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E232949 | Special features | Oil-resistant |
| Note on materials | RoHS-compliant Halogen-free | Application note | https://www.festo.com/Drive-Sensor-Overview |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -40°C 85°C | Repetition accuracy | 0.2mm |
| Switching output | NPN | Switching element function | N/C contact |
| On time | 1.3ms | Switch-off time | 7.3ms |
| Max. switching frequency | 130Hz | Max. output current | 100mA |
| Max. output current in mounting kits | 100mA | Max. switching capacity DC | 2.8W |
| Max. switching capacity DC in mounting kits | 2.8W | Voltage drop | 1.5V |
| Short-circuit protection | yes | Overload protection | Available |
| Rated operating voltage DC | 24V | DC operating voltage range | 5V 30V |
| Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 3 |
| Connection outlet orientation | Longitudinal | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
| Cable length | 2.5m | Cable characteristic | Suitable for energy chains/robot applications |
| Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Screwed tightly Can be inserted in slot from above | Max. tightening torque | 0.6Nm |
| Mounting position | Any | Product weight | 29.1g |
| Housing colour | Black | Housing material | PA-reinforced High-alloy stainless steel |
| Switching status indication | LED yellow | Function reserve indication | LED orange |
| Ambient temperature with flexible cable installation | -20°C 85°C | Degree of protection | IP65 IP68 IP69K |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8138000 |
Specifications may be subject to change without notice
