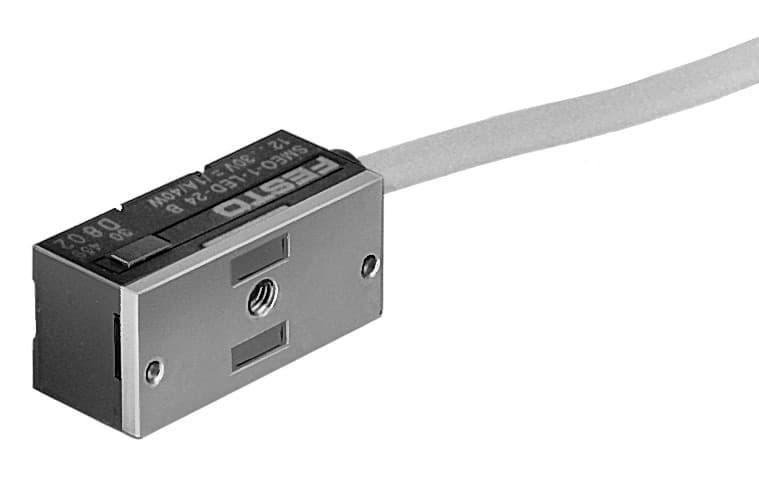

smeo-1-led-230-k5-b
Key Features
- 1High Accuracy and Reliability: The SMEO-1-LED-230-K5-B proximity sensor offers a high level of accuracy with a reproducibility of ±0.1 mm, ensuring reliable performance in various industrial applications.
- 2Magnetic Reed Measurement Principle: Utilizing a magnetic reed measurement principle, this sensor provides precise detection without the need for complex wiring, making it ideal for point-to-point connections.
- 3Wide Operating Temperature Range: The sensor operates within an ambient temperature range of -20 to 70 °C, making it suitable for a wide range of industrial environments.
- 4Bipolar Contact Output: Featuring a bipolar contact output, the SMEO-1-LED-230-K5-B ensures smooth and efficient switching operations, with a switch-on time of 0.5 ms and a switch-off time of 0.03 ms.
- 5Compliance with International Standards: The sensor conforms to the EN 60947-5-2 standard and carries the RCM mark and CE certification, ensuring compliance with EU EMC and low-voltage directives.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Conforms to standard | EN 60947-5-2 |
| Symbol | 00991624 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions To UK instructions for electrical equipment |
| Note on materials | RoHS-compliant | Measured variable | Position |
| Measuring principle | Magnetic reed | Ambient temperature | -20°C 70°C |
| Repetition accuracy | 0.2mm | Switching output | Contact-based, bipolar |
| Switching element function | N/O contact | On time | 0.5ms |
| Switch-off time | 0.03ms | Max. switching frequency | 500Hz |
| Max. output current AC | 250mA | Max. output current DC | 120mA |
| Min. switching capacity AC | 40VA | Max. switching capacity DC | 40W |
| Voltage drop | 4.5V | Residual current | 0mA |
| Short-circuit protection | no | Overload protection | Not available |
| Operating voltage range AC | 5V 250V | DC operating voltage range | 5V 200V |
| Reverse polarity protection | no | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 2 |
| Connection outlet orientation | Longitudinal | Cable length | 5m |
| Color cable sheath | Gray | Material of cable sheath | PVC |
| Type of mounting | With accessories | Tightening torque | 2.9Nm |
| Mounting position | Any | Product weight | 130g |
| Housing colour | Black | Housing material | Epoxy resin PC PET Steel TPE-O Die-cast zinc |
| Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
| Degree of protection | IP67 | Surge resistance | 4kV |
| LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
| Manufacturer ID | 160998 |
Specifications may be subject to change without notice
