Product Model

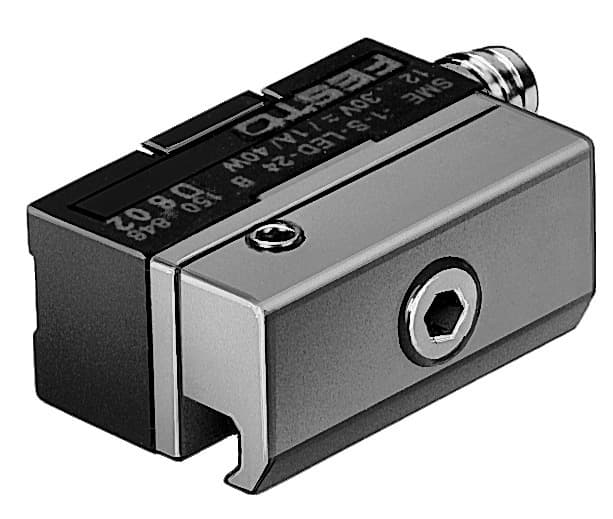

sme-1-s-24-b

Manufacturer

Festo

Key Features

1Magnetic Reed Technology: Utilizes magnetic reed technology for accurate and reliable measurements.
2Block Design: Compact block design for easy integration into various applications.
3IP67 Protection: Ensures robust operation in harsh environments with IP67 protection.
4Operational Range: Compatible with DC and AC operating voltages of 12-27V.
5Contact-Based Output: Provides contact-based, bipolar output for seamless integration into control systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Design	Block design	Symbol	00995365
CE marking (see declaration of conformity)	As per EU EMC directive As per EU RoHS directive	UKCA marking (see declaration of conformity)	To UK instructions for EMC To UK RoHS instructions
Note on materials	RoHS-compliant	Measured variable	Position
Measuring principle	Magnetic reed	Ambient temperature	-20°C 70°C
Repetition accuracy	0.2mm	Switching output	Contact-based, bipolar
Switching element function	N/O contact	On time	0.5ms
Max. switching frequency	500Hz	Max. output current	1000mA
Min. switching capacity AC	27VA	Max. switching capacity DC	27W
Short-circuit protection	no	Overload protection	Not available
DC operating voltage range	0V 30V	Reverse polarity protection	no
Electrical connection 1, connection type	Plug	Electrical connection 1, connection technology	M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, number of pins/wires	3	Electrical connection for input 1, connection pattern	00992826
Connection outlet orientation	Longitudinal	Type of mounting	With accessories
Mounting position	Any	Product weight	45g
Housing colour	Black	Housing material	Epoxy resin PET Steel Steel, galvanized Die-cast zinc
Ambient temperature with flexible cable installation	-5°C 70°C	Degree of protection	IP67
LABS (PWIS) conformity	VDMA24364-B2-L	Manufacturer ID	150850

Specifications may be subject to change without notice
