Product Model

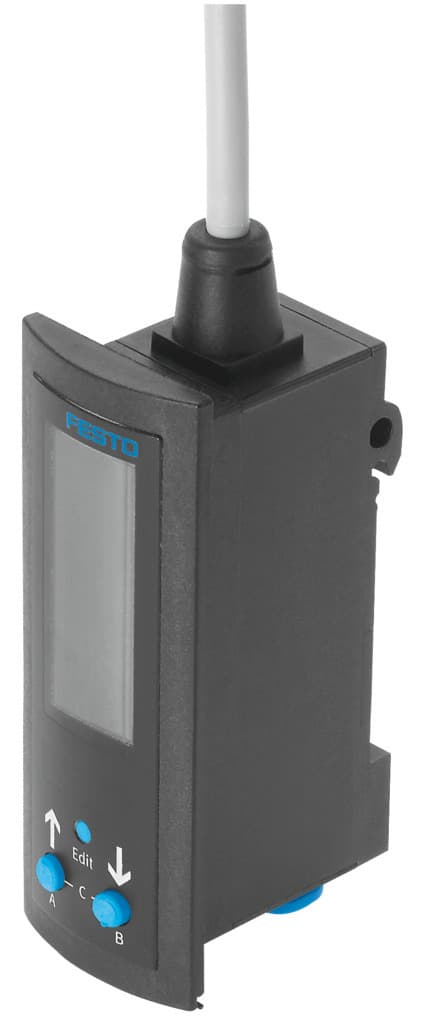

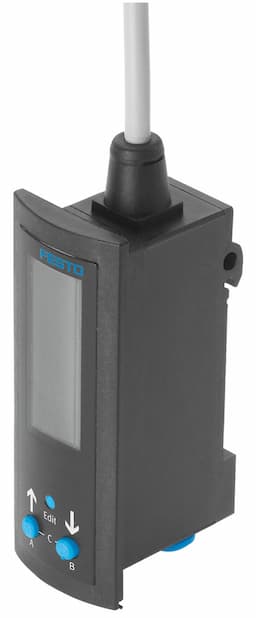

sde3-v1d-b-fq4-2p-m8
Key Features
- 1
- 2
- 3
- 4
- 5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991165 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | 2 x relative pressure |
| Method of measurement | Piezoresistive pressure sensor with display | Pressure measuring range initial value | 0psi |
| Pressure measuring range end value | -14.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
| Ambient temperature | 0°C 50°C | Accuracy in ± % FS | 2%FS |
| Switching output | 2xPNP | Switching function | Freely programmable |
| Switching element function | Switchable | Reproducibility of switching value | 0.3% |
| Max. output current | 100mA | Short-circuit protection | Pulsed |
| DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00991171 | Cable length | 0.3m |
| Type of mounting | Front panel mounting | Mounting position | Any |
| Pneumatic connection | QS-4 | Product weight | 61g |
| Housing material | PA-reinforced PC | Display type | Illuminated LCD |
| Switching status indication | LCD yellow | Setting options | Teach-in |
| Protection against tampering | PIN code | Setting range threshold value | 0% 100% |
| Setting range hysteresis | 0% 90% | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 540198 |
Specifications may be subject to change without notice
